Brand:
ChipshowItem NO.:
C-Pad-C P1.5Payment:
Wire Transfer/ ChecksProduct Origin:
Shenzhen,ChinaColor:
full color RGBShipping Port:
Glendale CaliforniaLead Time：
3 daysInstallation Demo:
Advantages：
1.High reliability：COB modules, moisture proof, Anti-collision, Scrubable lamp surface ,low power consumption, fast heat dissipation, effectively prolong the service life of the chip.
2.Good consistency ,seamless assemble, available for 2K/4K/8K solutions.

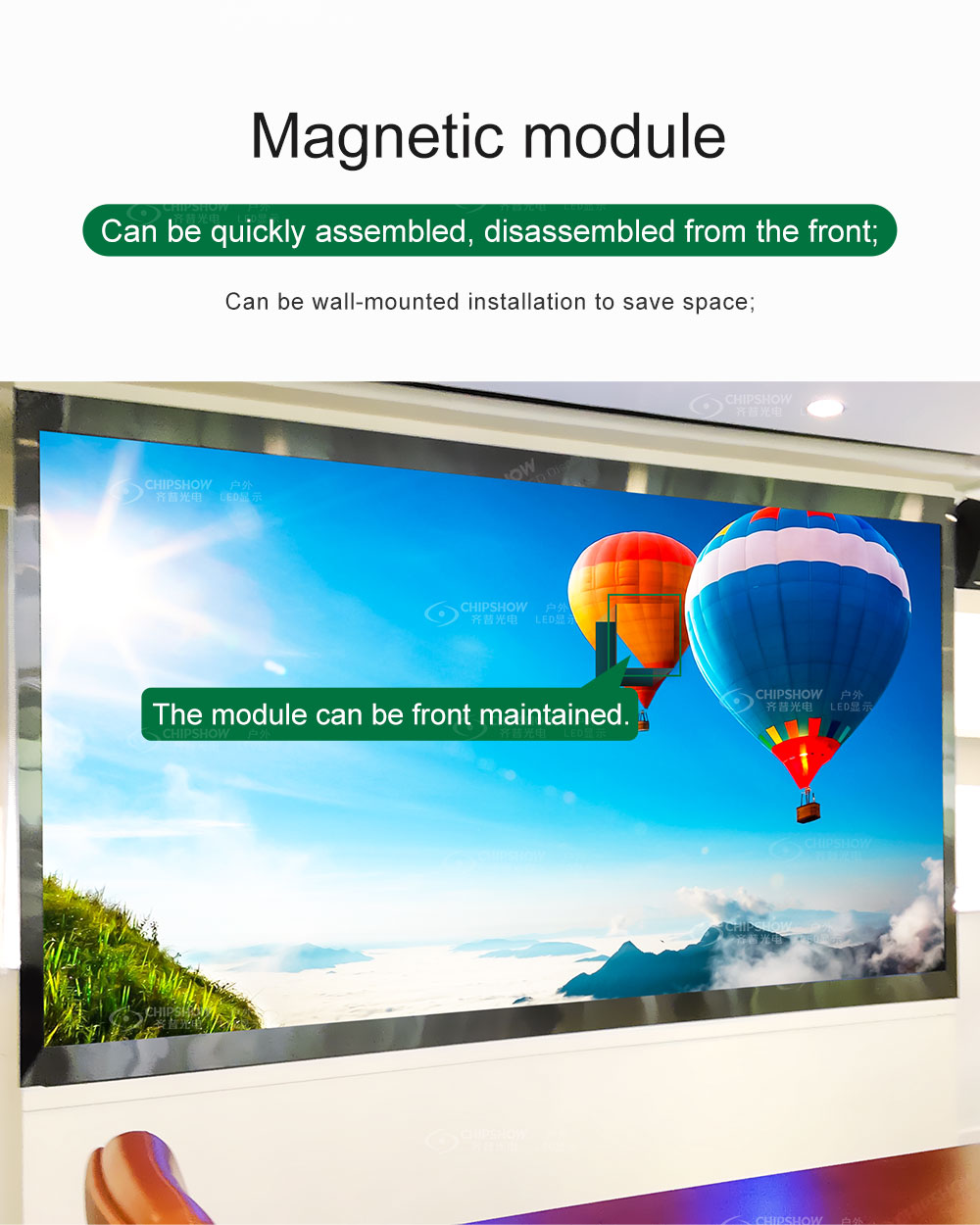

3.Magnetic modular design, it can be mounted to the wall and maintained from front, save space and guarantee worry-free operation of large screen.
4.Constant current drive chip,low power dissipation, uniform light,meet the high refresh rate/contrast ratio/gray level requirements.
5.Support point by point calibration function, insure the color and brightness uniformity of whole screen after assemble, and improve visual performance.
6.160°Ultra large horizontal and vertical viewing angel, Soft and not dazzling image, better visual performance.
7.Widely applied to professional application, such as security monitoring/command and monitor system/conference room/museum/display/industrial design/exhibition, where need HD images.
Specification:
Item
Specification Parameter
Pixel Pitch、Resolution rate、size
1.56mm、96*108、150*168.75mm
Pixel color、 Pixel LED
1R1G1B、 Inverted COB
Working voltage、Module Power
DC4.2V、9W
Driving IC、Driving way
ICN2065、/
HUB
Material、Cabinet Weight(kg/Cabinet)
Die-Cast Aluminum 、4kg/ Cabinet；7.9kg/ Cabinet
Resolution rate、size、Module quantity
384*216 Dots、600*337.5*39.5mm、4*2；384*432 Dots、600*675*39.5mm、4*4
Density
409600 Dots/㎡
White balance 、Color temperature
600 CD/㎡、9300K
view angel、Non-Flatness、Module interval
H/V：160°/160°、＜0.1mm、＜0.1mm
Maximal power/㎡、Average power/㎡
330W/㎡、110W/㎡
Frame frequency、Refresh frequency、Gray grade
60Hz、1920Hz-3840Hz、≥13bit
Control system、System supports
CHIPSHOW，Windows XP，WIN 7，Novastar
Working temperature、Protection grade
﹣10~40℃、 Front/Back ：IP54
-
IPv6 network supported
