Brand:
ChipshowItem NO.:
C-Beetle P3.91Payment:
Wire Transfer/ ChecksProduct Origin:
Shenzhen,ChinaColor:
full color RGBShipping Port:
Glendale CaliforniaLead Time:
3 daysProduct Demo:
Live Demo - In Stock, Ready To Deliver:

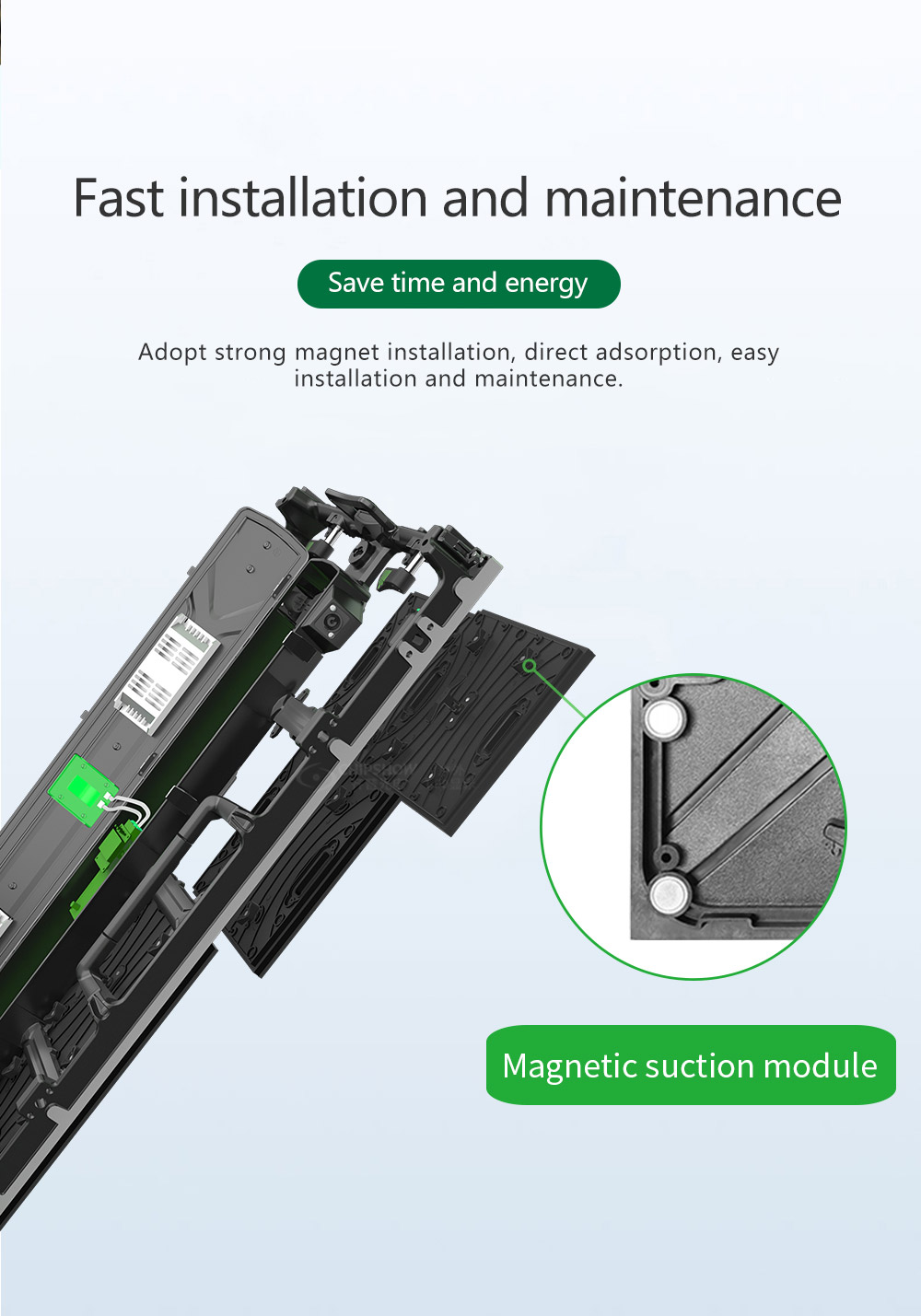

Magnet Installation Demo:
Advantages:
1.Easy:Modular design, easy assembly and maintenance.
2.module size:250*250mm ,Smooth surface, module gap small ,High precision

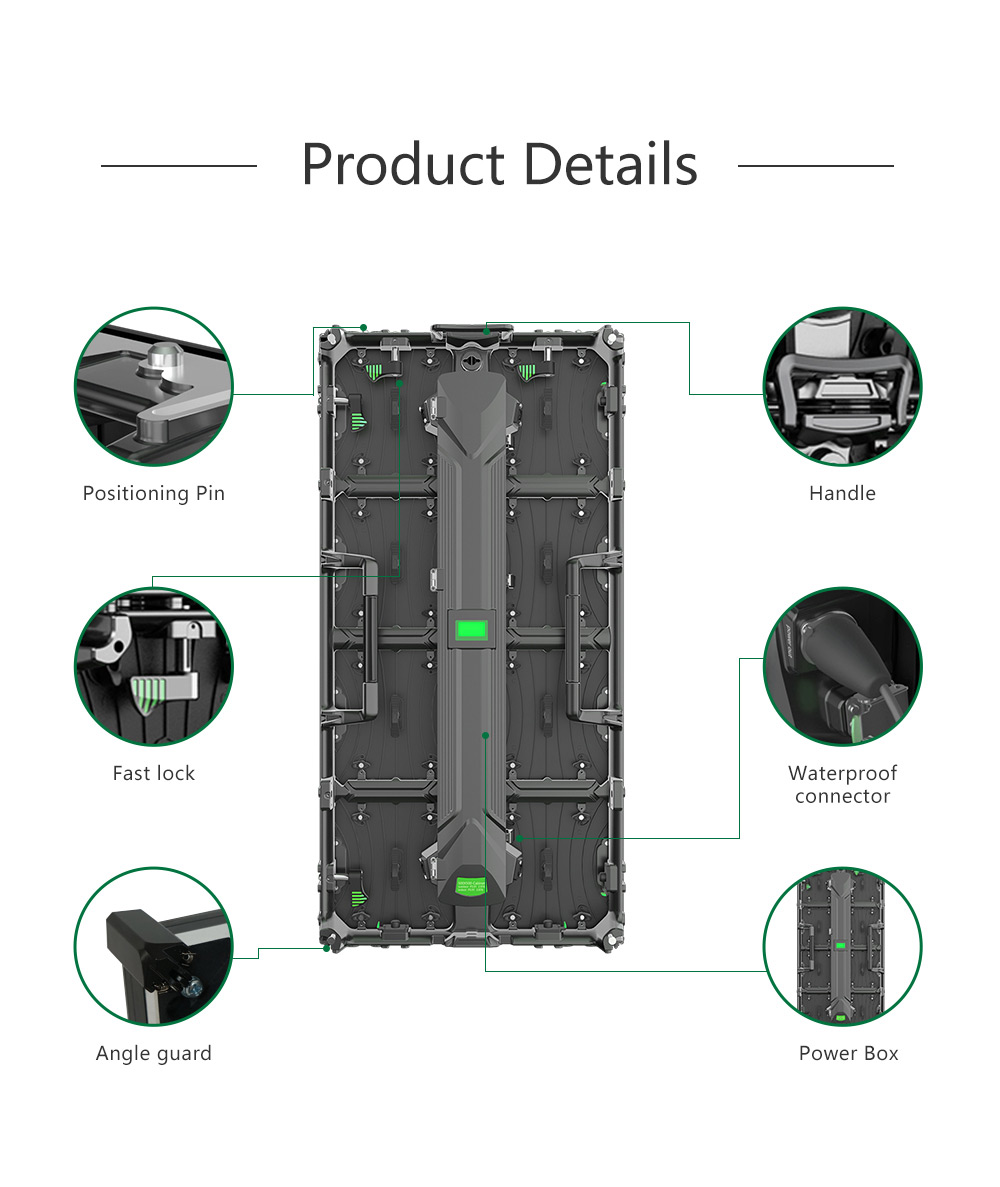

Cabinet features:
3. Light:Cabinet size:500*1000*86mm, Weight:13kg/pc.

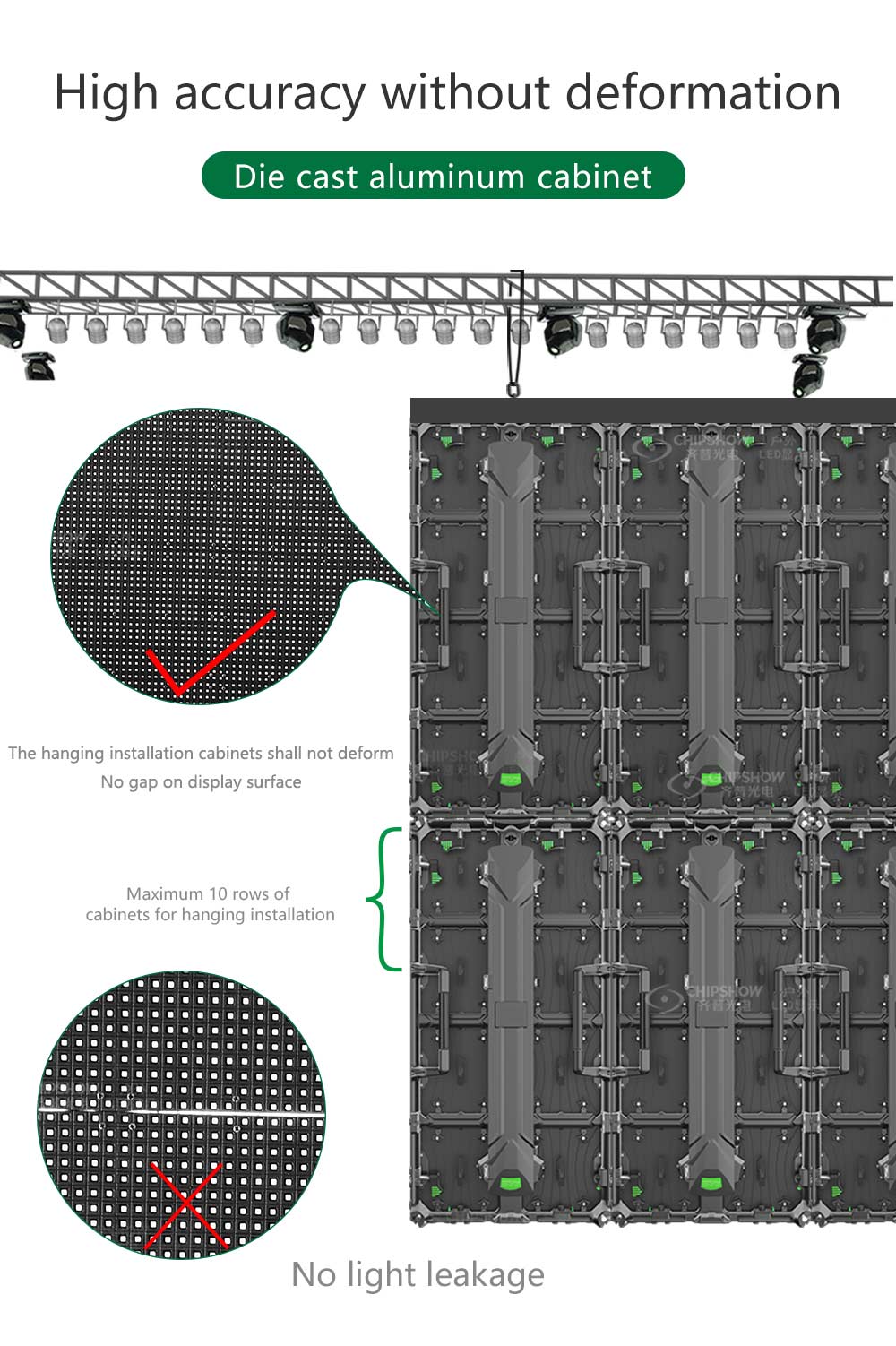

4. Thin:Die-cast aluminum design, high precision, thickness only 86mm.
5. Fast:Fast locks, Easy to assemble and disassemble.
6. Compatibility:Available pixel pitch for P3, P3.91,P4.81;
7. Low:Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

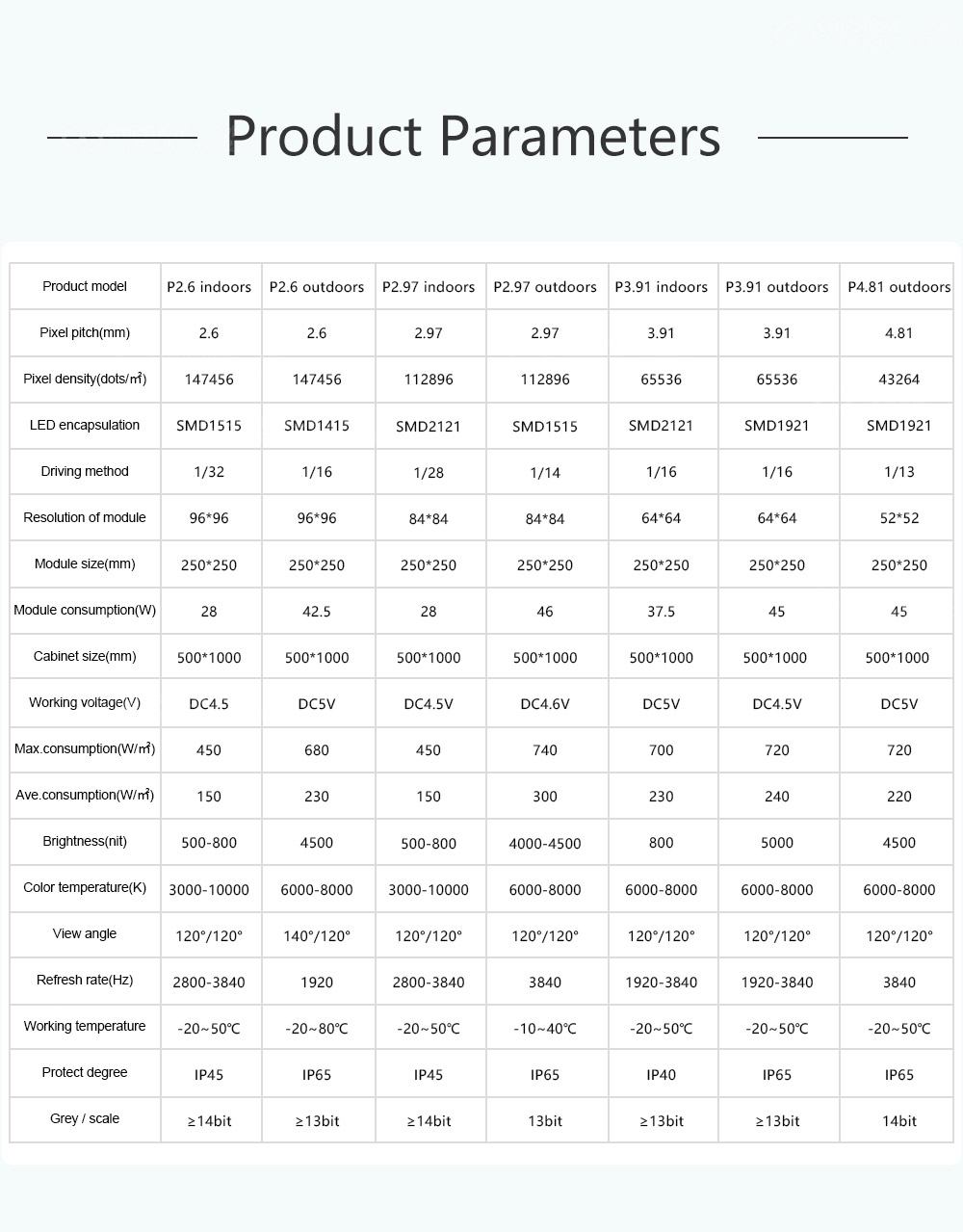

Specification:
Item |
Specification Parameter |
Pixel Pitch、Resolution rate、size |
3.91mm、64*64、250*250*16mm |
Pixel color、 Pixel LED |
1R1G1B、 SMD1921 |
Working voltage、Module Power |
DC4.5V、45W |
Driving IC、Driving way |
ICN2153、1/16 |
HUB |
HUB(AXS-500X1000-TEST)-C-V1.1
|
Material、Cabinet Weight(kg/Cabinet) |
Cast aluminum、8kg/Cabinet |
Resolution rate、size、Module quantity |
128*256Dots、500*1000*85mm、2*4
|
Density |
65536 Dots/㎡ |
White balance 、Color temperature |
5000CD/㎡、6000K-8000K |
view angle、Non-Flatness、Module interval |
H/V:120°/120°、<0.2mm、<0.2mm |
Maximal power/㎡、Average power/㎡ |
720W/㎡、240W/㎡ |
Frame frequency、Refresh frequency、Gray grade |
60Hz、1920Hz-3840Hz 、≥13bit |
Control system、System supports |
CHIPSHOW,Windows XP,WIN 7 |
Working temperature、Protection grade |
-20~50℃、Front/Back:IP65 |
