Indoor LED display

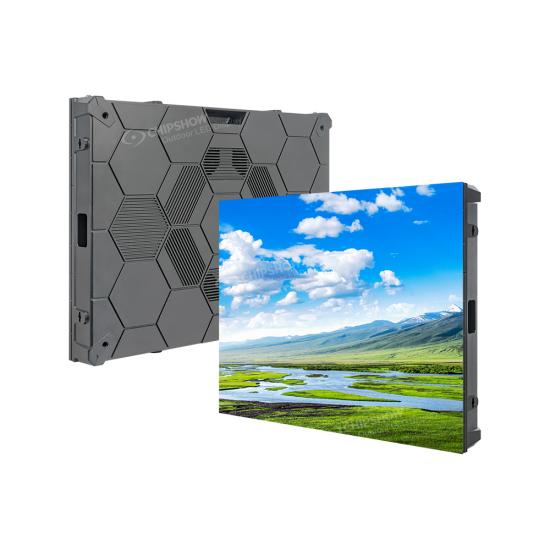

P2.5 C-Max indoor screen Background screen for stage meeting or wedding

Small pitch display for indoor use Light HD full color simple installation
  • Brand:

    Chipshow
  • Item NO.:

    C-Max P2.5
  • Payment:

    Wire Transfer/ Checks
  • Product Origin:

    Shenzhen,China
  • Color:

    full color RGB
  • Shipping Port:

    Glendale California
  • Lead Time:

    3 days
  • Product Detail

Advantages:


1,,Ready stock: Ready stock in European and American warehouses, face to face payment and fetching is available.
2,High precision: Die-cast aluminum cabinet, high precision and good flatness;
3,Good compatibility: The cabinet can be quickly replaced with module of the pixel pitch from P1.25 to P4, and images can be upgraded to higher quality with lower cost.
4,Ultra-light and thin: Die-cast aluminum cabinet, light-weighted, thin, beautiful appearance;

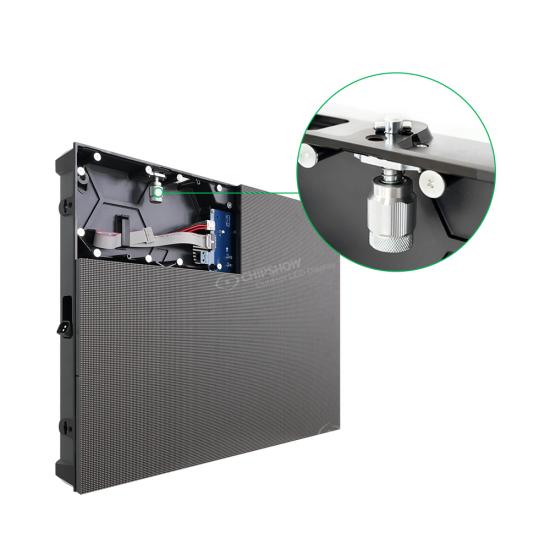

5,Wall-mounted installation: modules, power supplies, and system cards can be fully maintained from the front; space-saving, suitable for high-end commercial display occasions.
6,Ratio: Can be assembled to 4:3, 16:9 large screens; the same video source ratio as LCD, and can directly replace the original LCD. Widely used in auditorium stage, conference room, banquet hall, exhibition studio, traffic command, security monitoring and other occasions.


Specification:


Item
Specification Parameter

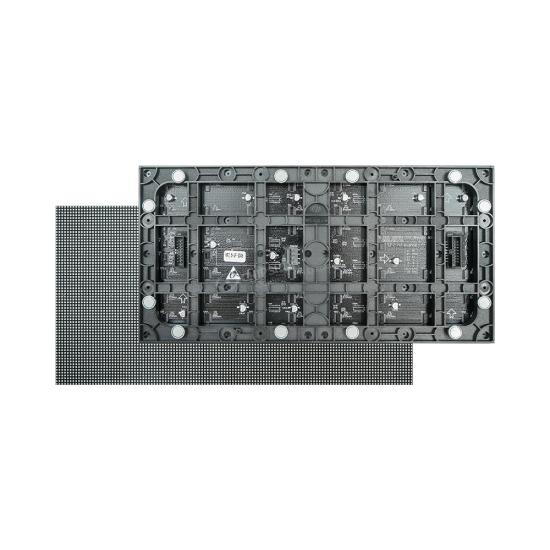

Pixel Pitch、Resolution rate、size
2.5mm、128*64320*160*17mm

Pixel color Pixel LED


1R1G1B、 SMD1515
Working voltage、Module Power

DC4.6V、≤18.5W


Driving IC、Driving way
ICN2153、1/32
HUB
HUB75
Material、Cabinet Weight(kg/Cabinet)
Die-cast Aluminum、9kg/Cabinet
Resolution rate、size、Module quantity
256*192Dots、640*480*70mm、2*3
Density
160000 Dots/㎡
White balance 、Color temperature
800 CD/㎡、6000K-8000K
view angel、Non-Flatness、Module interval
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
360W/㎡、108W/
Frame frequency、Refresh frequency、Gray grade
60Hz、1920Hz-3840Hz、≥13bit
Control system、System supports
CHIPSHOW,Windows XPWIN 7
Working temperature、Protection grade
-20~50℃、Front/BackIP40
