LED Signs Modules

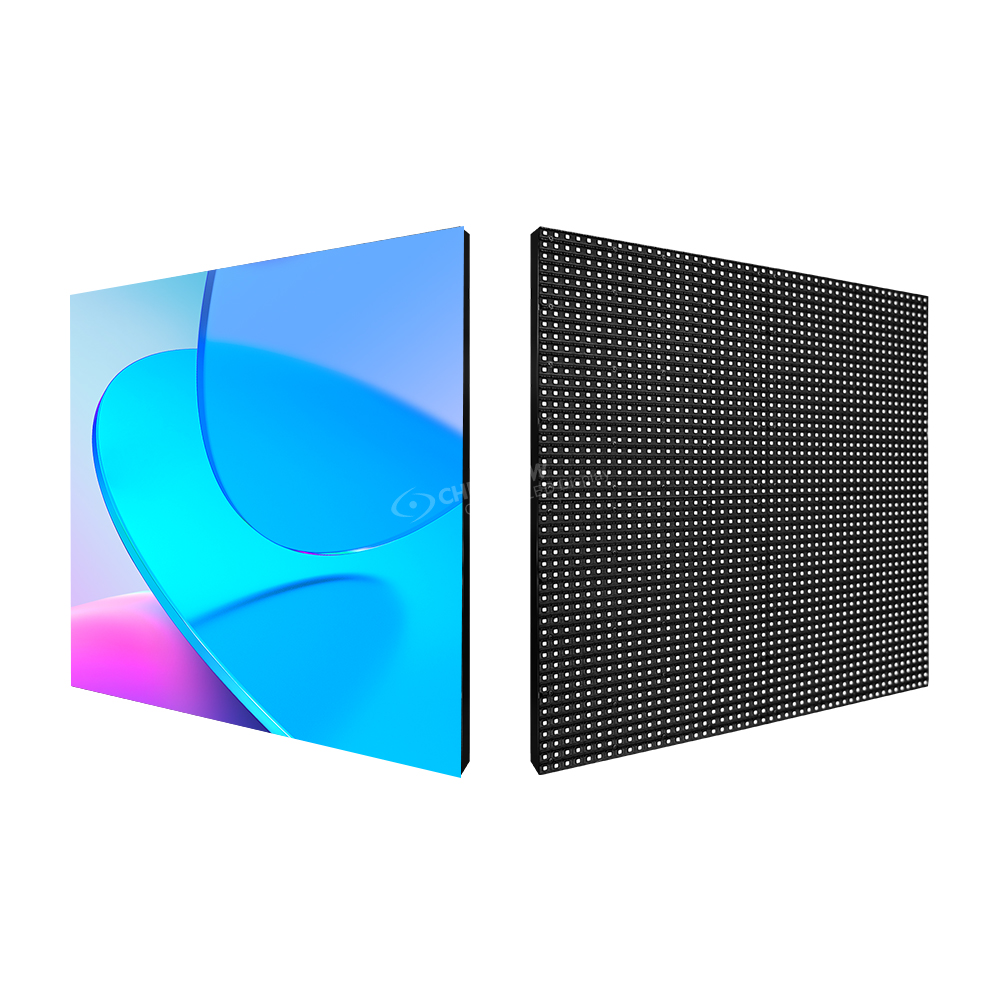

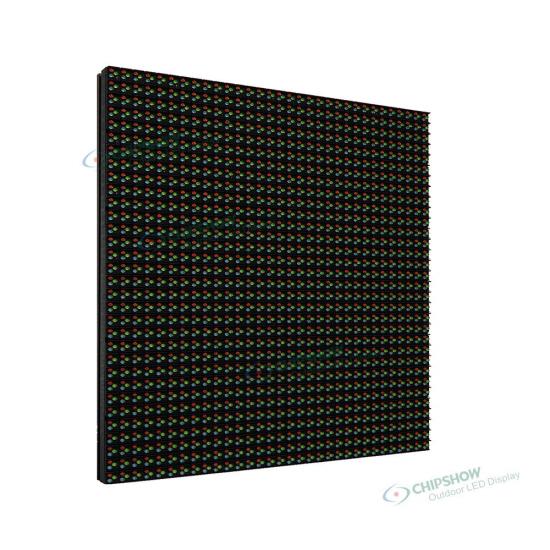

P5/6/8/10/16 LED Sign Modules

Chipshow Outdoor LED Signs modules provide a possibility for local signs companies to have their LED signs made in USA, and further lower the costs compared to outsourcing it elsewhere.
  • Brand:

    Chipshow
  • Item NO.:

    C-Easy
  • Payment:

    Wire Transfer/ Checks
  • Product Origin:

    china
  • Color:

    full color RGB
  • Shipping Port:

    Glendale California
  • Lead Time:

    3 days
  • Product Detail


Specific advantages of our LED modules:
1 Compared with common LED modules in the market, our LED modules can save more than 30% of energy;


2 The brightness level can reach 8500Nits;

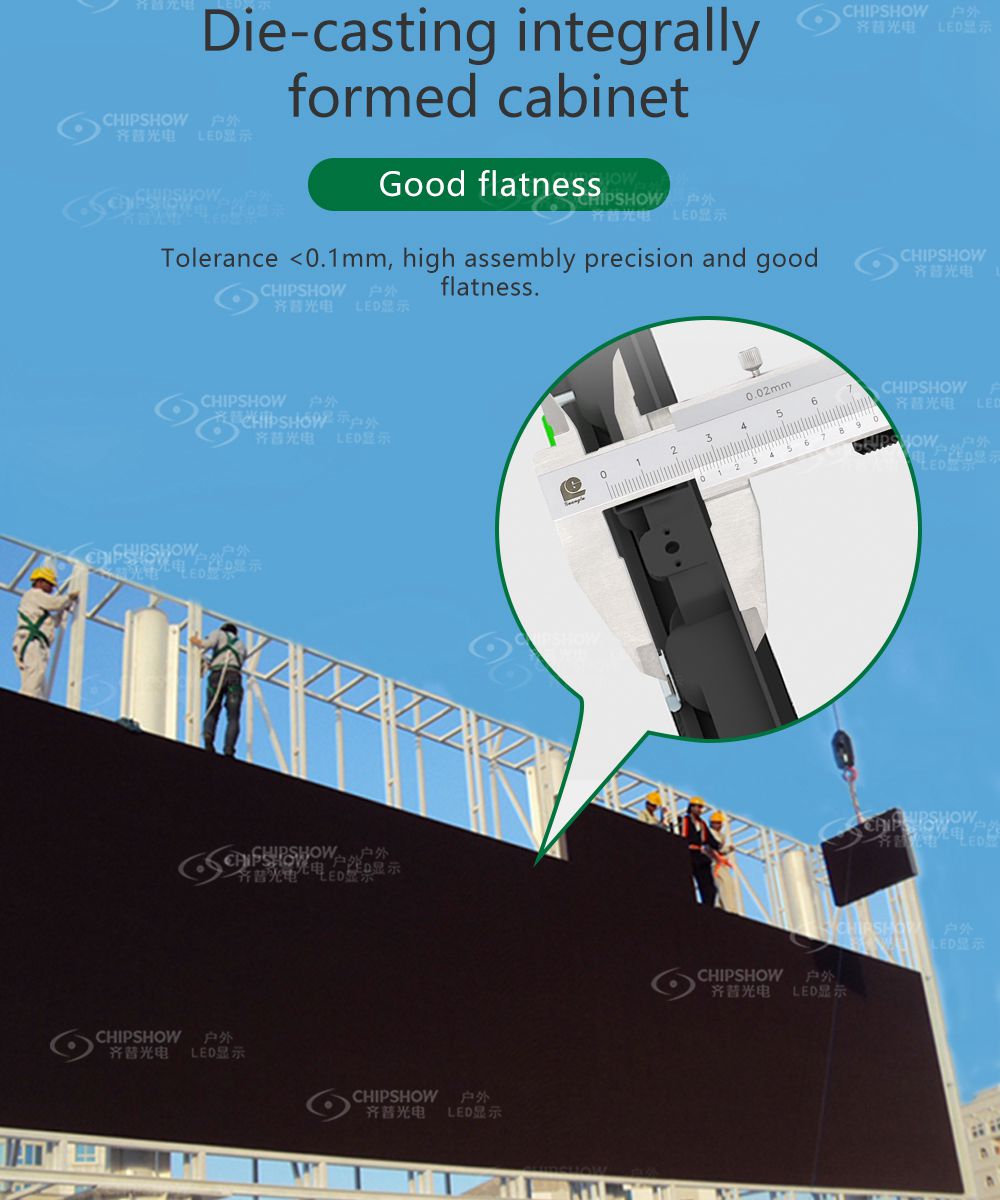

3 The modules are one-time die casting formed; the tolerance of dimension is controlled within 0.1mm, so it has good flatness and high assembly precision;


4 All the modules are easy to replace, which ensures a fast assemble and dissemble of outdoor LED screens;

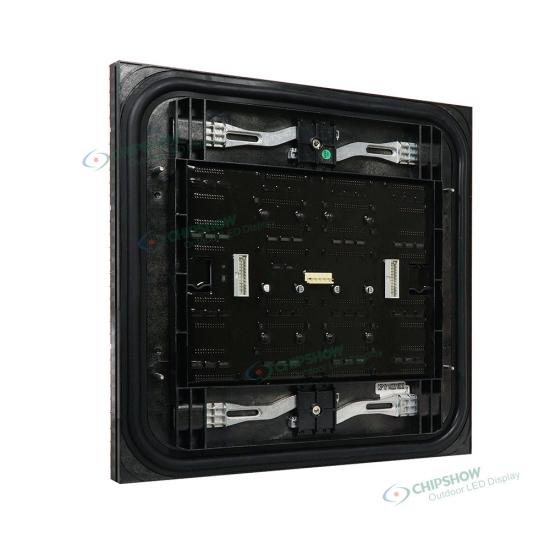

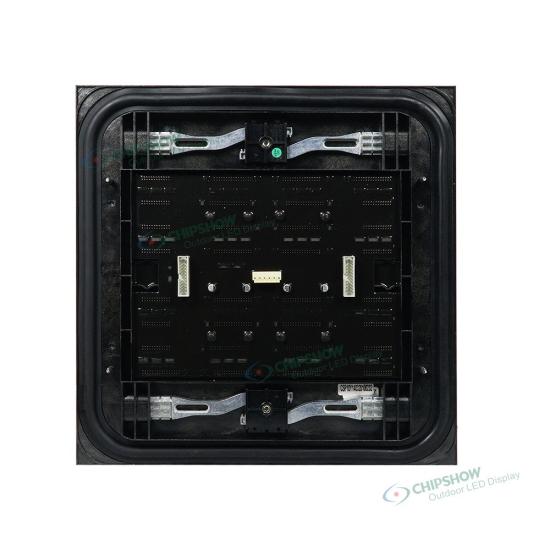

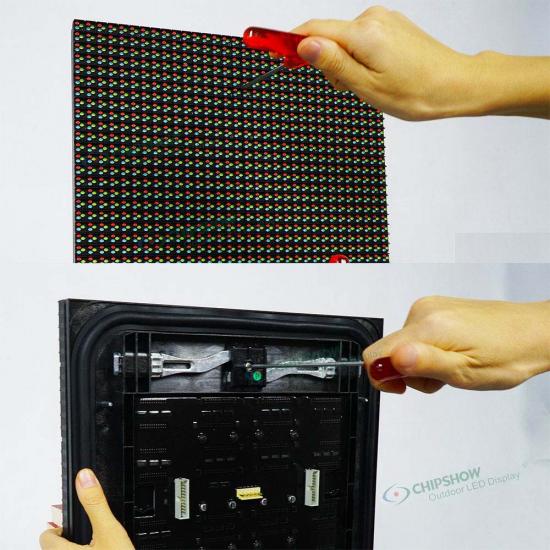

5 All the LED modules adopt front-and-rear maintenance design, so you can install and maintain them smoothly without worrying about all kinds of outdoor environments;

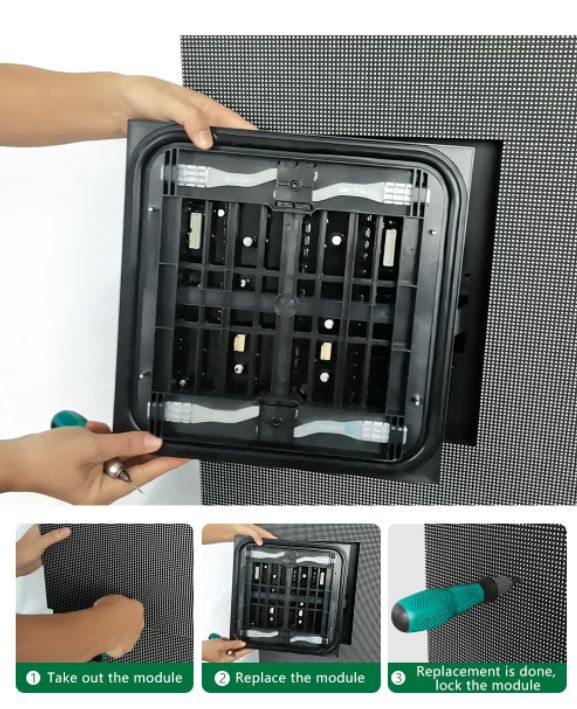

Product Demo (Front Maintenance Of C-Easy P10 LED Modules):



6 Optimal outdoor durability: all the modules reach IP65 high protection grade, which ensures the LED screens can withstand harsh weather conditions (e.g.  temperature changes, rain, snow, sunlight, wind, and dust) without being adversely impacted;

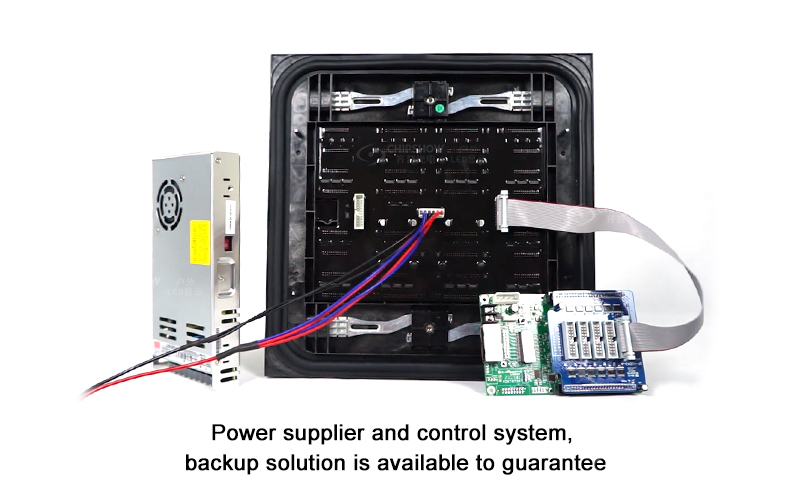

The dark black surface, flat and firm anti-UV module parts ensure that the screens will be assembled in firm shape; the backup solution of the power supply control system guarantees is available to guarantee the screens can still work well under abnormal conditions;



The broadcast level color scale, color temperature, and brightness can adjust intelligently; hence, the LED modules always bring audiences smooth color, high color ratio, natural pictures;

9 The screen size is customizable: the LED modules can be assembled into display screens of different sizes; whether you want to make an LED sign or an LED billboard, our LED modules can be suitable;

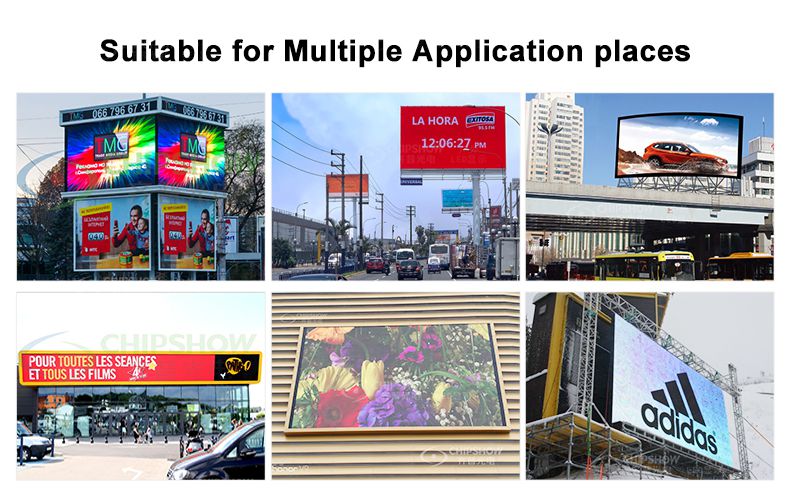

Generally, our LED modules are widely used in scenes related to outdoor advertisement, culture and tourism, sports, propaganda images, government & enterprise projects,  and commercial real estate.

Specifications


Product

 C-Easy

Pixel Pitch

5,6.67,8,10,16mm

Module size

 320*320mm

Brightness

 ≤8500nit

Color temperature

 6500~8500K

Refresh frequency

 1920~3840HZ

Working temperature

 -20~50℃

Protection grade

 IP65/IP54

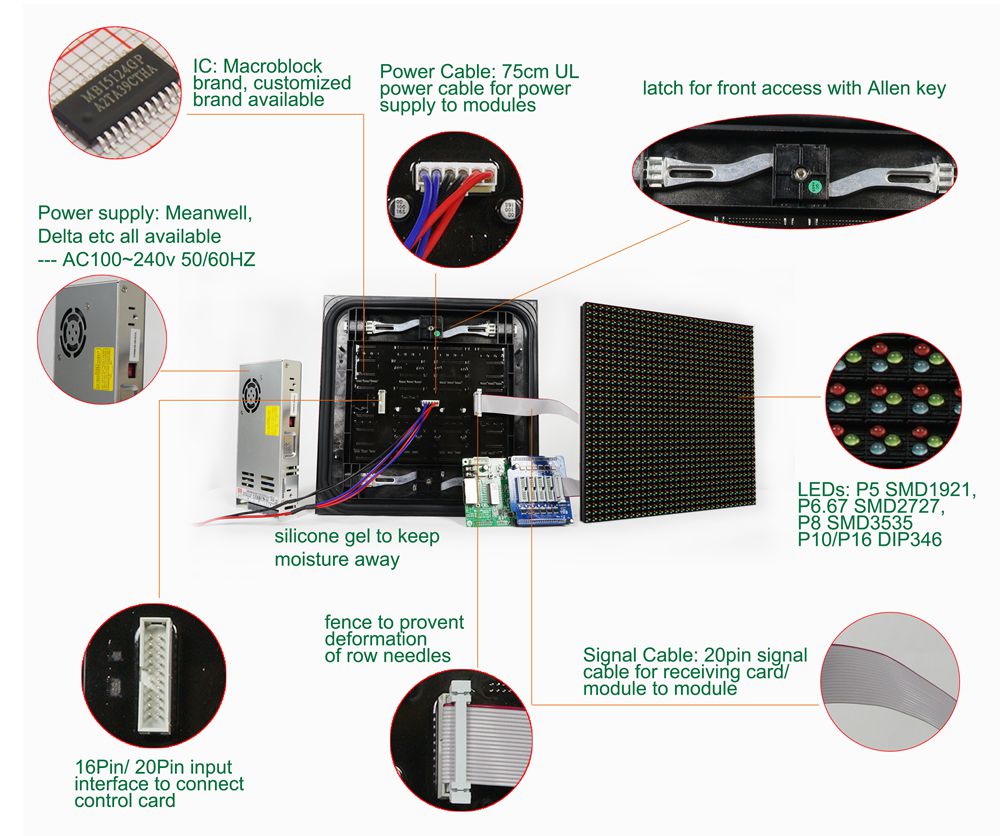

LED Modules in connection with other accessories

1. Power supply: Meanwell delta etc all available --AC100~240V 50/60HZ
2. IC: Macrolock brand, customized brand available
3. Power cable: 75cm ul power cable for power supply to modules
4. Latch for front access with allen key
5. Silicone gel to keep moisture away
6. 16pin/20pin input interface to connect control card
7. Fence to provent deformation of row needles
8. Signal cable: 20pin signal cable for receiving card/module to module

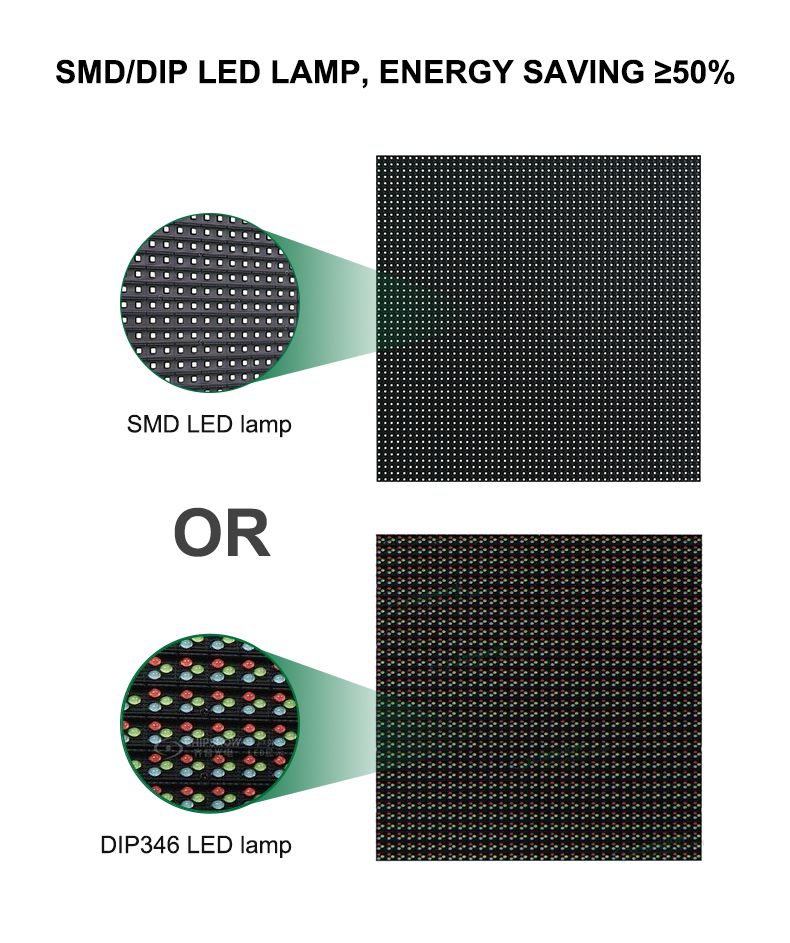

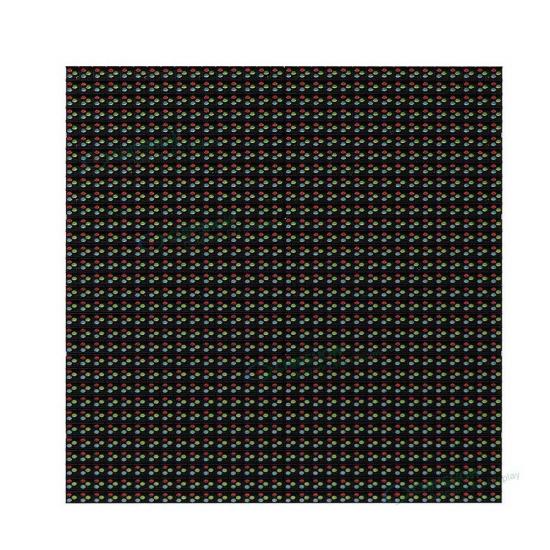

9. LEDs: P5 SMD 1921, P6.67 SMD2727, P8 SMD3535, P10/P16 DIP 346

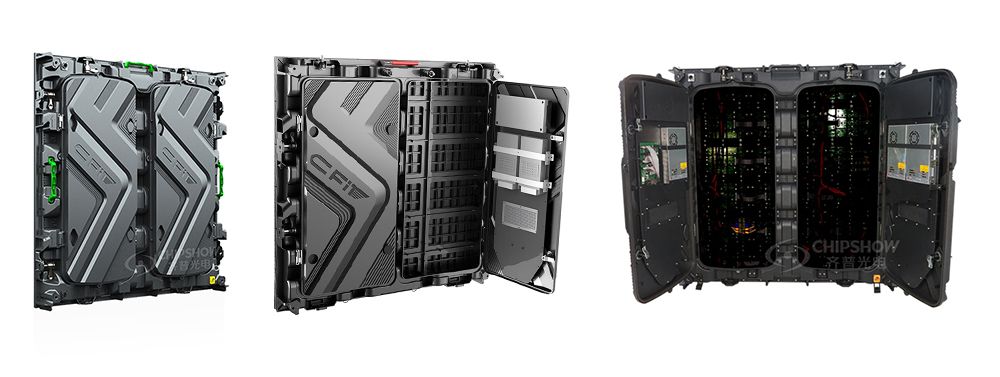

LED signs cabinet ready

Build your own LED signs with LED kits. Getting empty cabinets and make customized signs, such as 6ft x 3ft, 8ftx 4ft, 10ft x 5ft etc







Chipshow has more than 20 years of experience in manufacturing LED display screens. If you want to know more about Chipshow, you might check the page:  Chipshow - Professional Indoor & Outdoor LED Display Solutions;




FAQ:

1. What accessories will you need when making a LED sign?

LED modules, HUB cards, fans, modules ribbon cables and power cables, receiving cards, power supplies and a controller.


2. Can those accessories be available together with the LED modules?

Yes, those accessories can be available from our warehouse in Glendale California 91201.


3. To start making a LED sign cabinet, what do we need to know?

size details of the LED modules, a CAD drawing will be sent to you from us.
