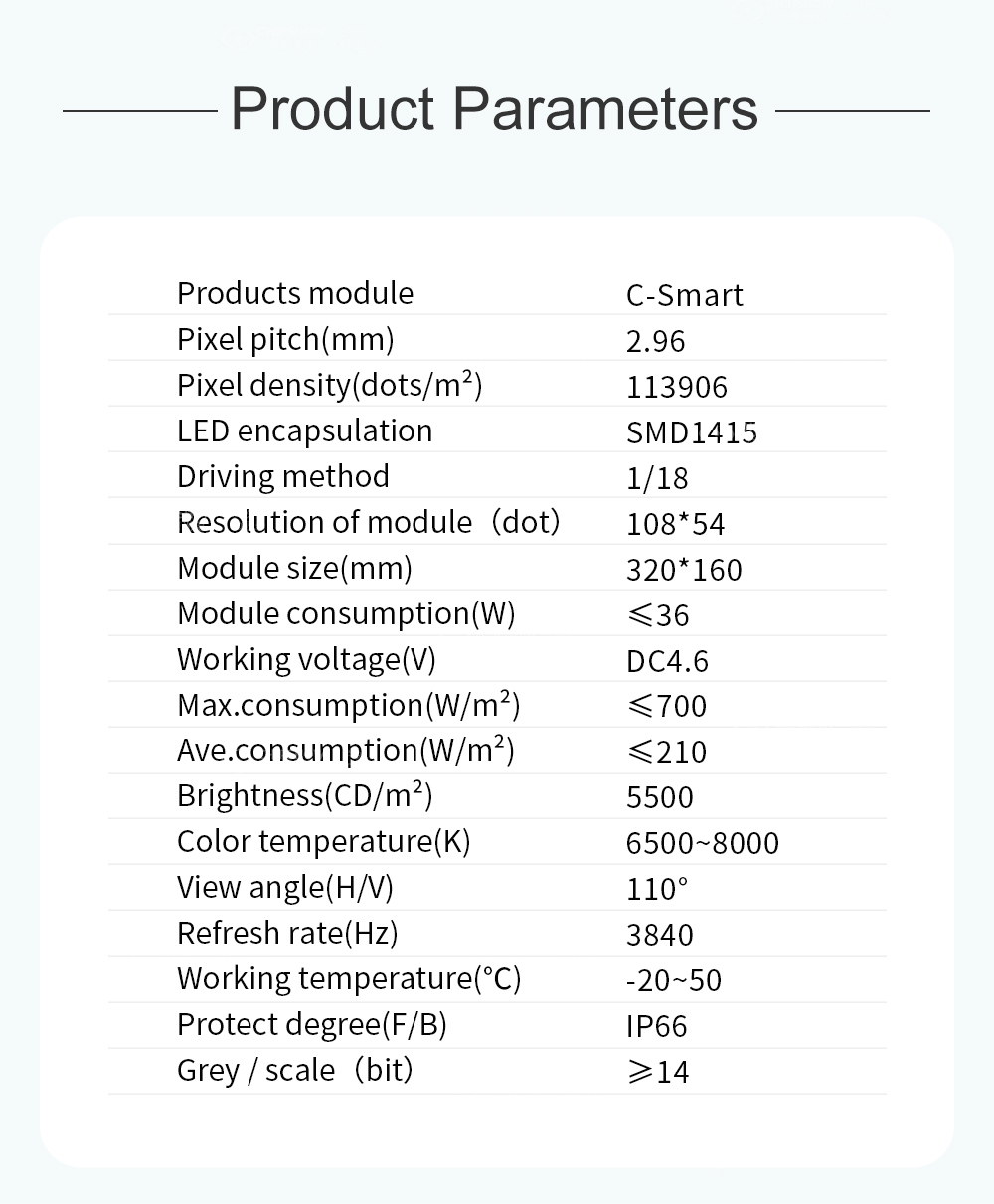

C-Smart 4-in-1 outdoor LED video sign – Low structural cost (P2.96)

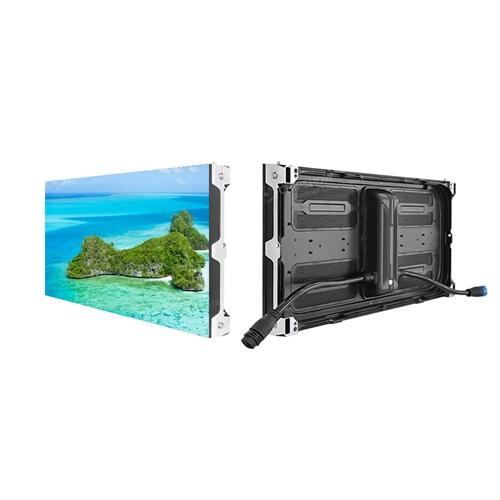

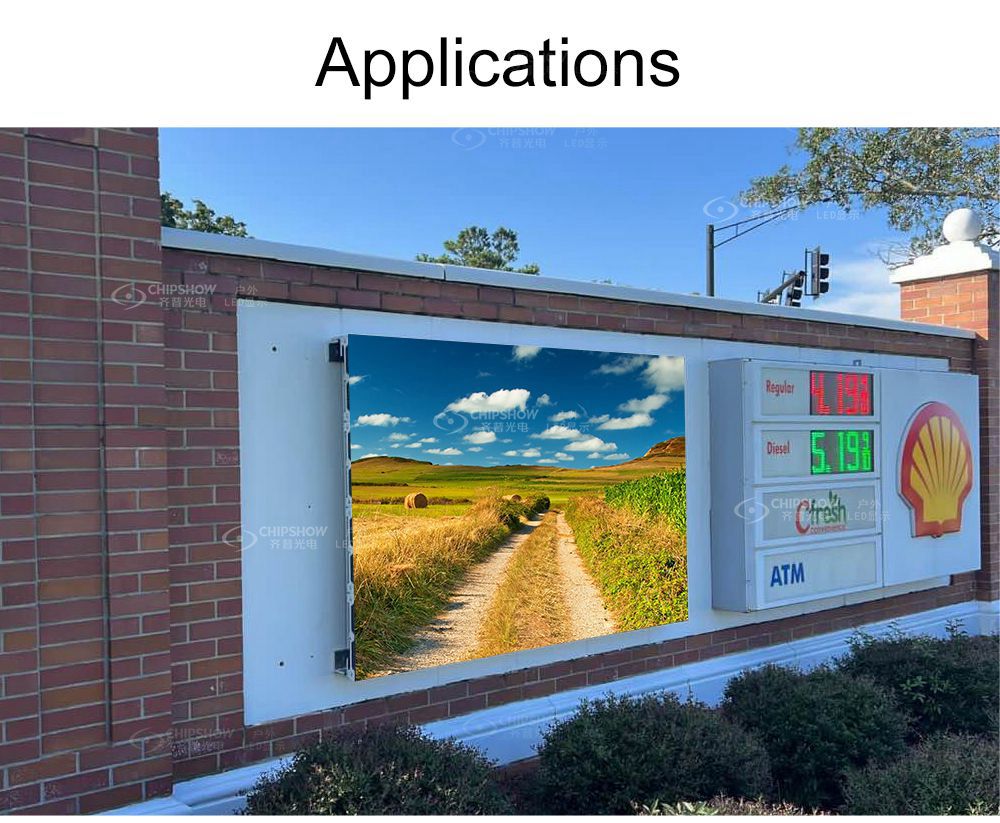

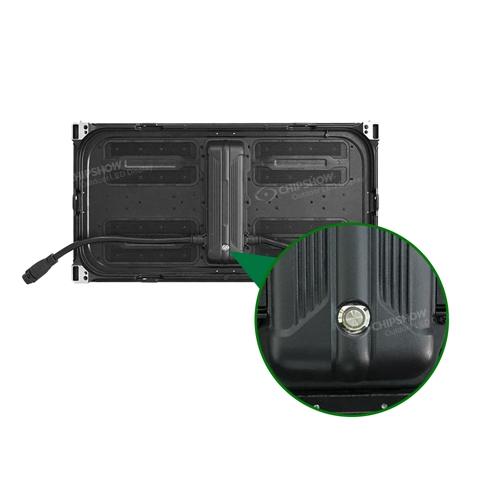

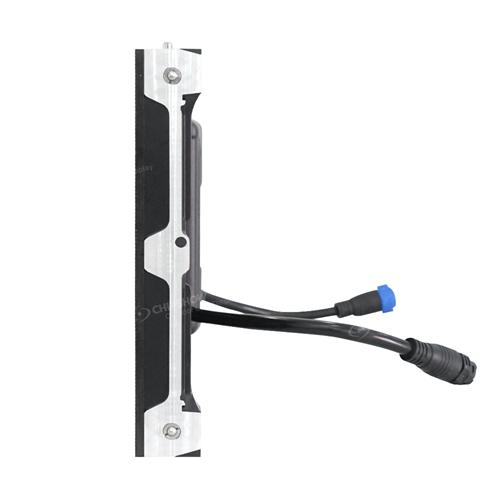

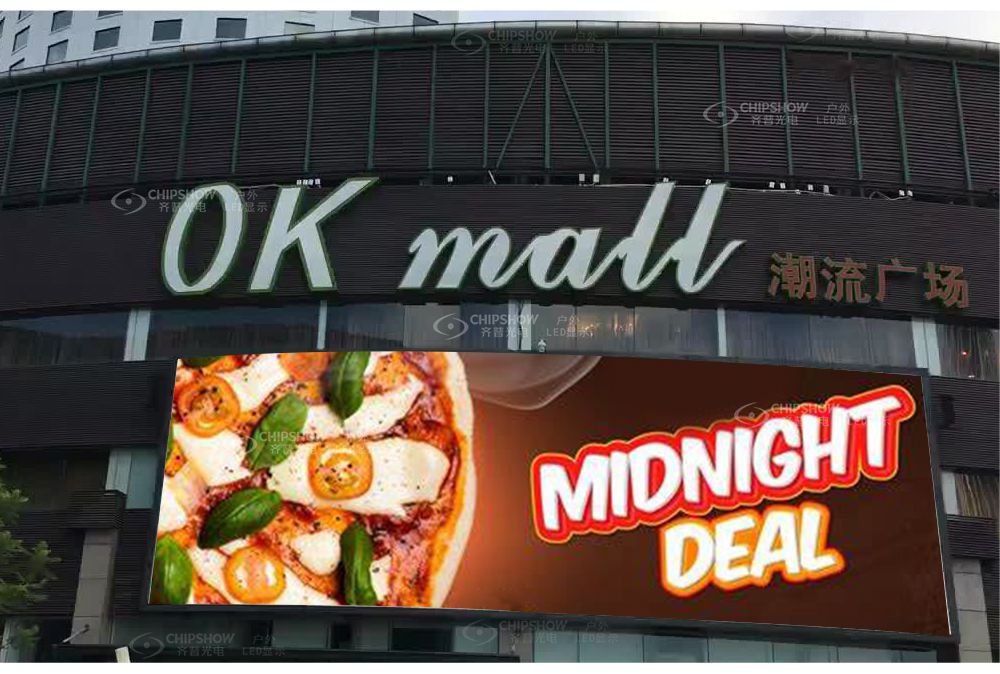

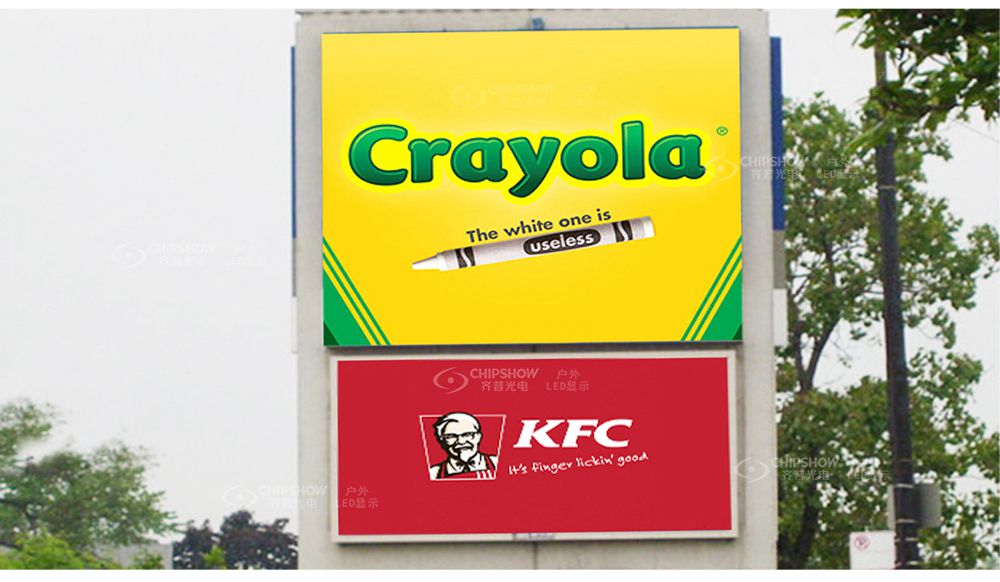

C-Smart is a simple integrated front and rear serviceable LED screen. No cabinet design, only need a simple frame to hold the modules, which can reduce a big cost of installation. Advantages: 1.      Integration of the module and cabinet, replacing the traditional cabinet , and cost-saving. 2.      Ultra-thin design, wall-mounted installation, easier maintenance front and rear. 3.      Unique mask design, dark color, high contrast. 4.      Module size 640mm*320mm, larger size, better flatness. 5.      Constant current drive, 1/10 scan. 6.      High brightness up to 8500nit/m2 optional, and has the advantages of a good light distribution curve and good angle consistency. 7.      IP66 waterproof grade of the module. 8. Wide applications: it can be used as LED signs for outdoor commercial outlets (e.g., stores, gas stations, vehicle tolls, and gyms) and public organizations (e.g., churches, communities, schools);

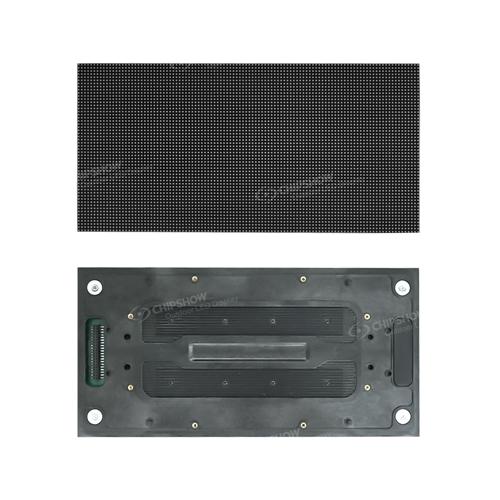

C-Easy P5,P6.67,P8,P10,P16 is a front and rear serviceable, energy-saving, outdoor waterproof replaceable LED modules. Advantages: 1. Energy-saving≥30%. 2. Brightness≤8500Nits 3. High accuracy and high flatness. 4. Replaceable modules, fast and easy replace. 5. Front and rear service. 6. IP65 protection grade 7. 320*320mm module size, you can assemble it into different size screens.

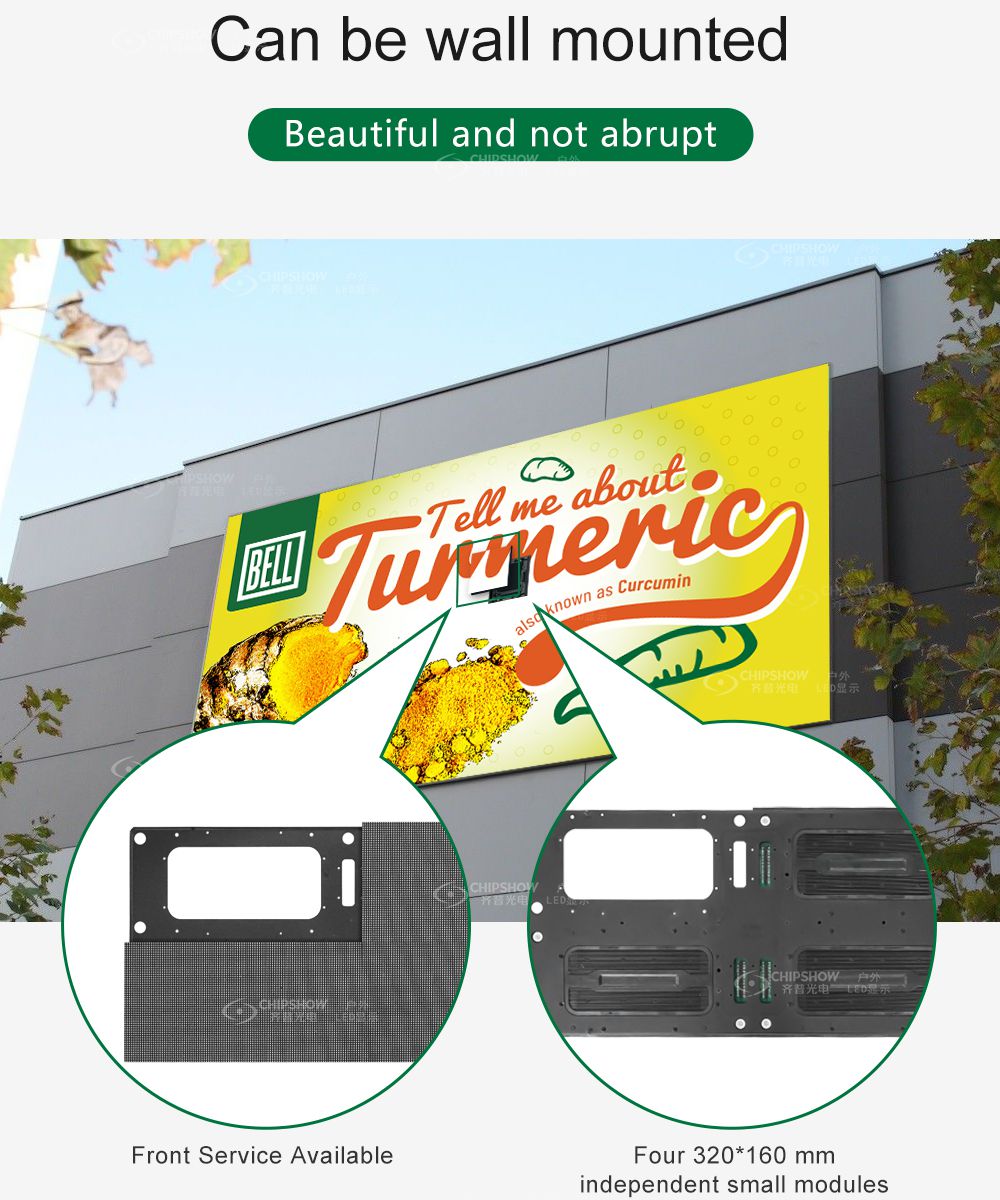

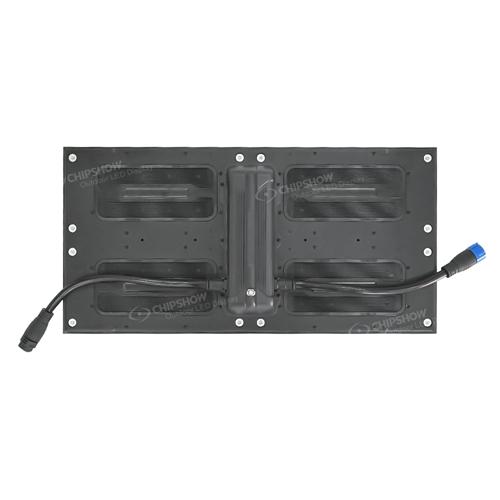

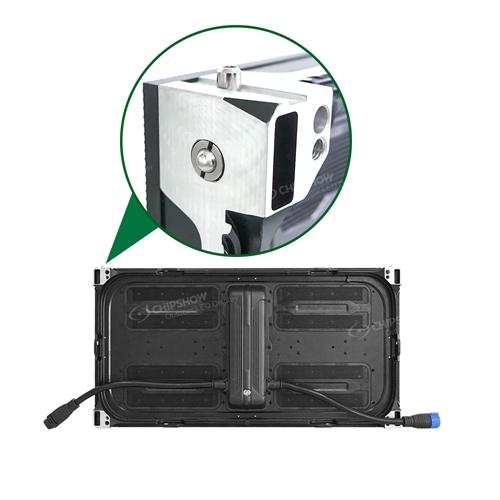

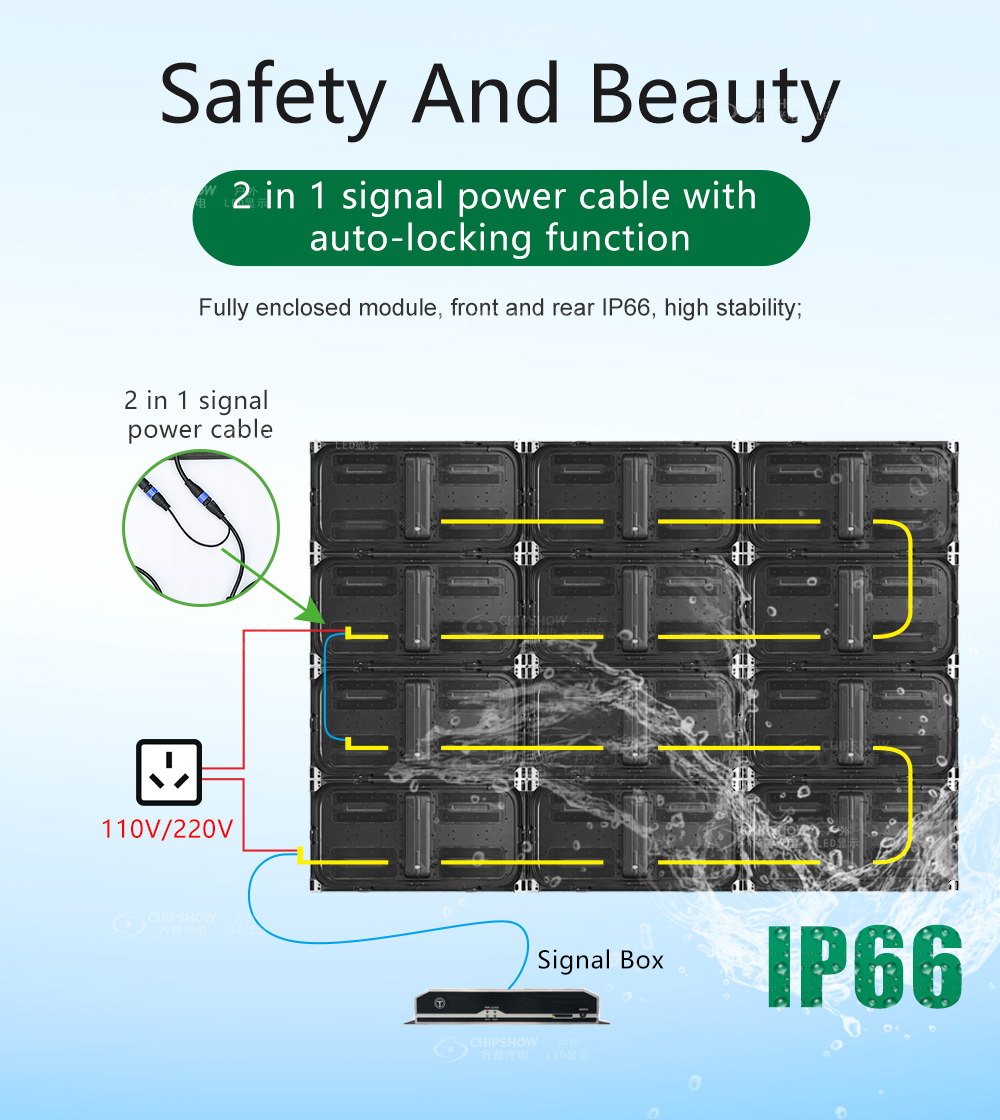

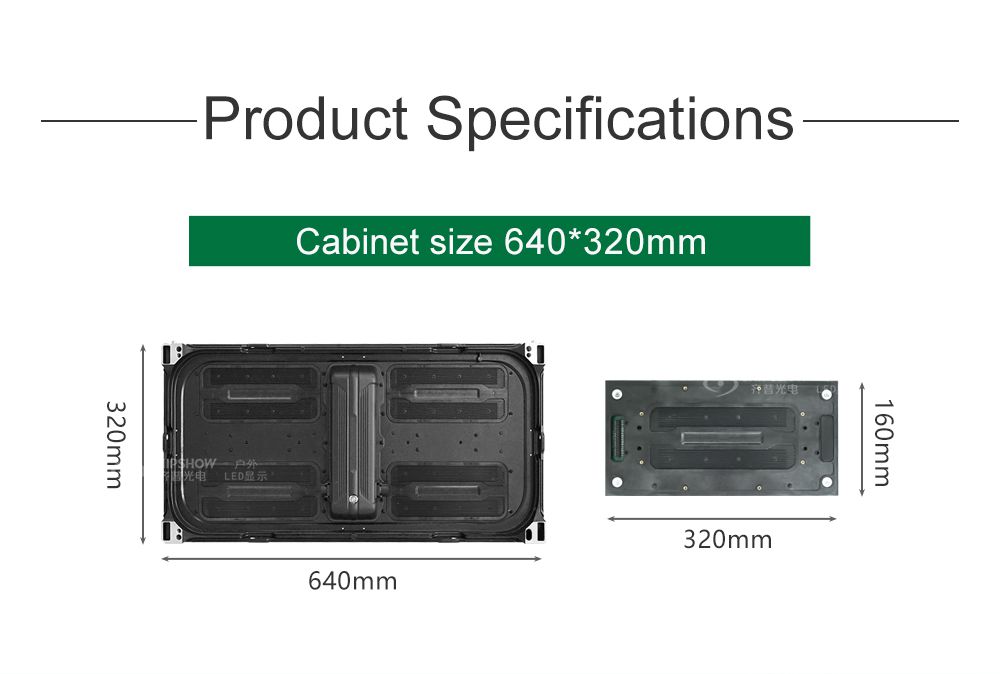

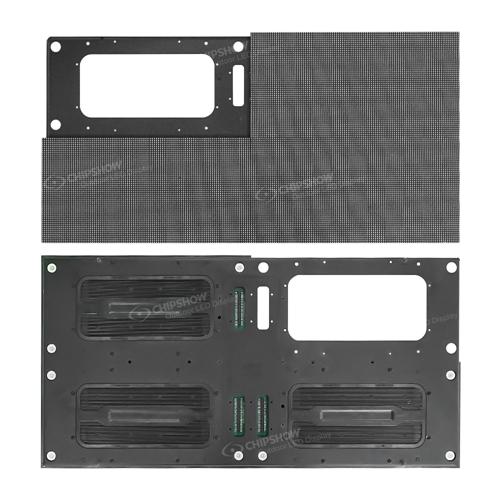

1 Fully enclosed LED modules: every module has a central control box and a power supply box that is connected with 4 unit models; 2 Simple bracket design: the modules just require a simple aluminum profile to complete installation, saving the cost of cabinets and frame structure; 3 Wall-mountable installation: the modules, power supply units, and control systems support front service, saving installation space greatly; 4 Self-expansion: the big-sized modules (size: 640*320 mm) can be seamlessly spliced due to their excellent flatness; you can quickly build screens with different sizes; 5 Quick screen connection: the modules adopt 2-in-1 signal power cables for convenience of quick connection and installation; in addition, the wiring is also relatively tidy; 6 Ultra light, ultra-thin: the weight of an entire cabinet is only 23.5KG/㎡; therefore, transportation costs can be saved; 7 High-level protection: the fully-enclosed modules with a rating of IP66 ensure the screens can be seasoned to various outdoor conditions; 8 Comprehensive display solution: the screens are especially suitable for outdoor advertising at different scenes (e.g. shopping mall, roadside, door header, and shop window); Specification： Chipshow C-Smart-Outdoor Led Screen P6.67U0604S27-C96X48-CA1280X640 Qualification： C-Smart IP66,LVD,EMC EP3761294 Patent

Robust aluminum profile design with 4 US patents. The ultimate solution for stable, long-term DOOH revenue. Daytime ROI: Up to 14,000 nits ensures content remains profitable and readable on sun-facing sites. OPEX Planning: Tuned power profiles help operators forecast electricity spend by location. Compliance Control: Lower brightness modes support night scheduling to reduce glare complaints. Engineering-Friendly: Lightweight magnesium cabinets reduce lifting pressure and steel load. Service Access: Front & rear maintenance suits complex façades and monopole billboards. Thermal Discipline: Common-cathode design reduces wasted heat, extending component life (project-dependent).

Simplicity and durable, indoor commercial preferred. • 640x480mm cabinet size, it can be assembled with a variety of 4:3 and 16:9 LED large screens, directly mounted on the wall, saving space and labor. • The same proportion of video source as LCD, directly replacing the original LCD. • Widely used in auditorium, conference room, banquet hall, security monitoring, command system. Module features: • Easy: Modular design, easy assembly and maintenance. • Module size: 320*160mm, Smooth surface, module gap small, high precision Cabinet features: • Light: Cabinet size: 640*480*72.5mm, Weight: 7.5kg/pc. • Thin: Die-cast aluminum design, high precision, thickness only 72.5mm. • Fast: Fast locks, Easy to assemble and disassemble. • Compatibility: Available pixel pitch for P2.5, P3, P3.3, P3.91, P4, P5, P6. • Low: Excellent cooling design, no fans or air-conditioners needed. noiseless, low power consumption, cost-effective.

Rental Solution with Flatness & Protection | Durable, Slim & Easy to Install

The balanced outdoor line for mainstream DOOH builds. Right-Fit Range: One platform covers P4–P10, adapting to viewing distances from street level to roof top. Everyday Daylight: Balanced 5,500 nits brightness suits typical urban commercial placements. Install Flexibility: Two cabinet sizes (960/480) help fit walls, poles, and irregular façade layouts. Tight-Space Service: Front access supports wall-mount sites where rear maintenance space is impossible. Outdoor Protection: IP65 sealing supports stable operation through rain, humidity, and temperature changes. Lifecycle Predictability: Built on a mature SMD platform to keep installation and service routines straightforward.

1.Fla：ADC12 high-strength die-cast aluminum cabinet, can be frequently assembled and disassembled without deformation, good flatness. 2.Practical：The extremely simple and practical design, firm handle, convenient fast lock, the simplest and most practical. 3.Magnetic locating：Fast and precise locating by the magnetic location pin on cabinet sides,  fast and easy installation for rental use. 4.Dual service：fast lock module design, easy maintenance from front or back. 5.Economical：Low cost, stable and reliable, and super cost-effective. 6.Global hot sale over 50,000 square meters. Ready stock, fast delivery.
