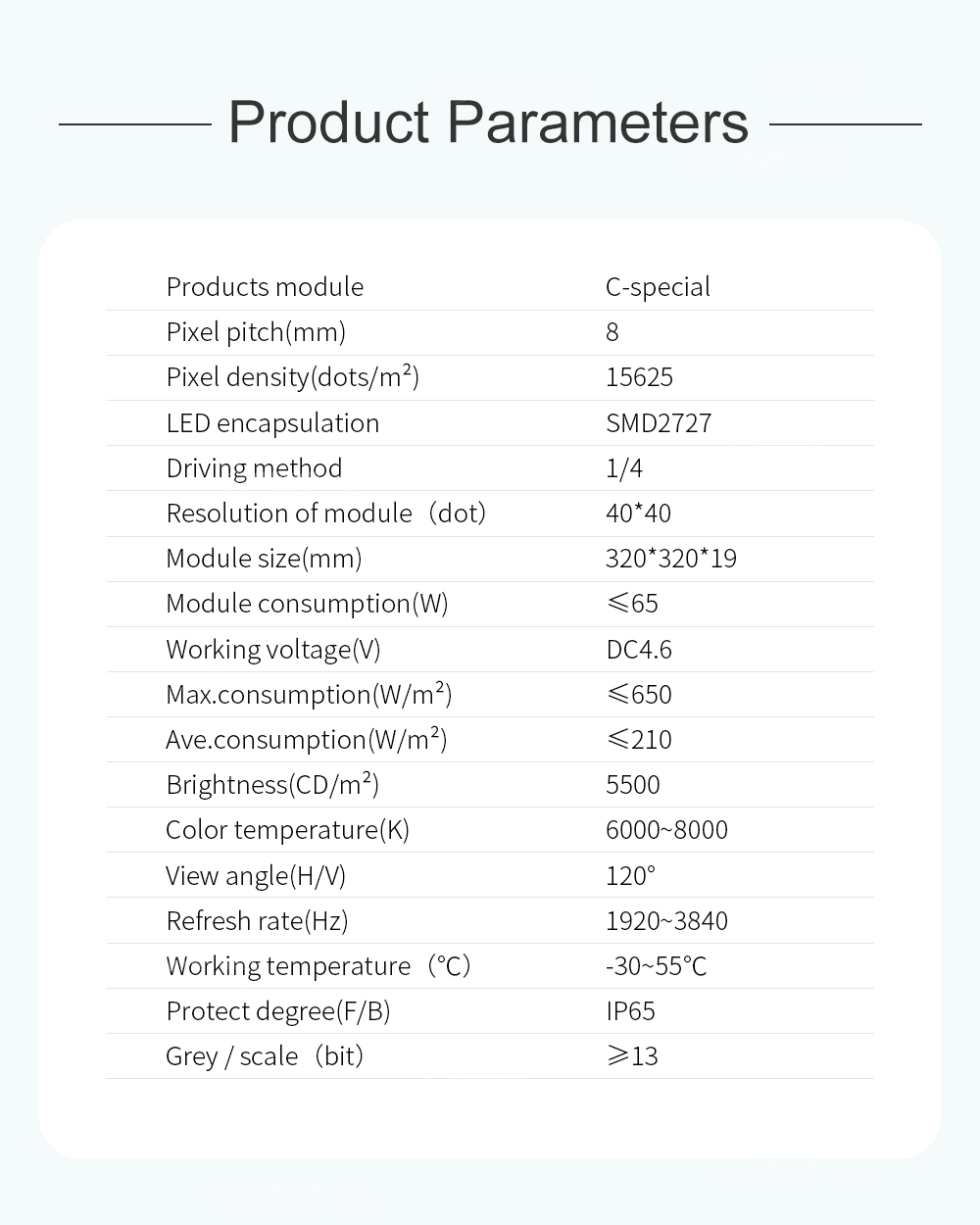

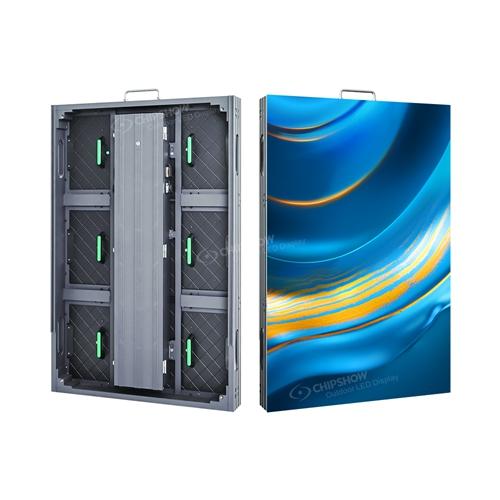

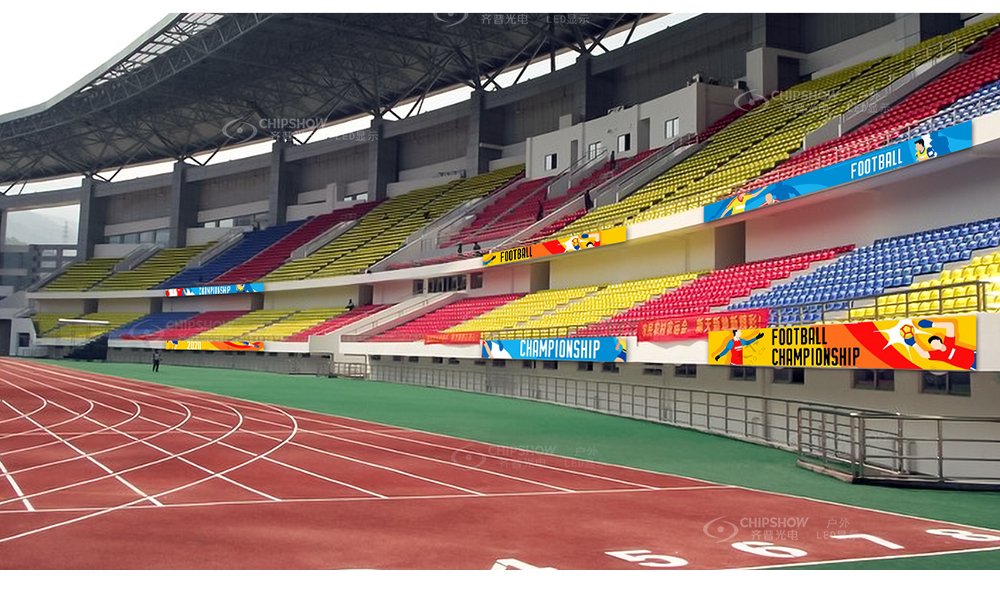

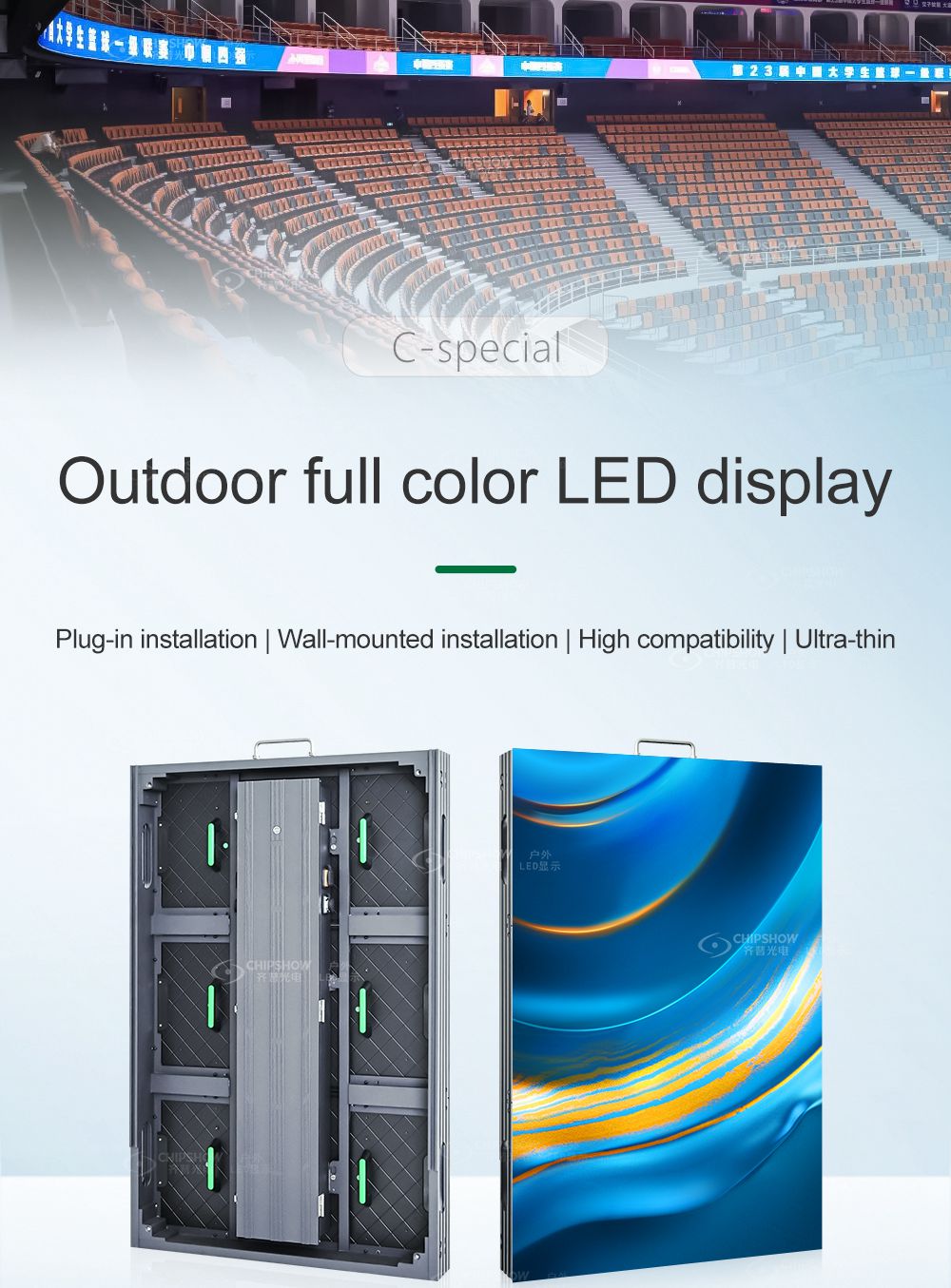

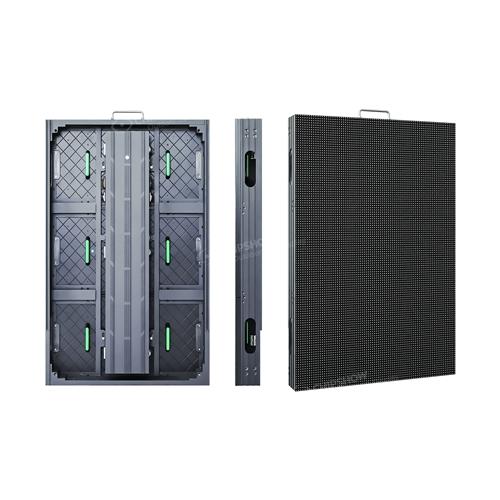

C-Special wall mounted LED display for stadium stands (P8)

P8,P10 C-Fit-Sport LED display adopt virtual replacement technology. Virtual ads could be transmitted to different countries instead of the real ads in stadium. Advantages: 1. Intelligent perimeter LED display. 2. Virtual replacement technology, powered by IR LED. 3. Fast Installation and maintenance cabinet design. 4. Soft protection kit design to protect players from harm. 5. Negative pressure heat-dissipation system, further guarantees the reliability. 6. Available for remote monitoring by App.

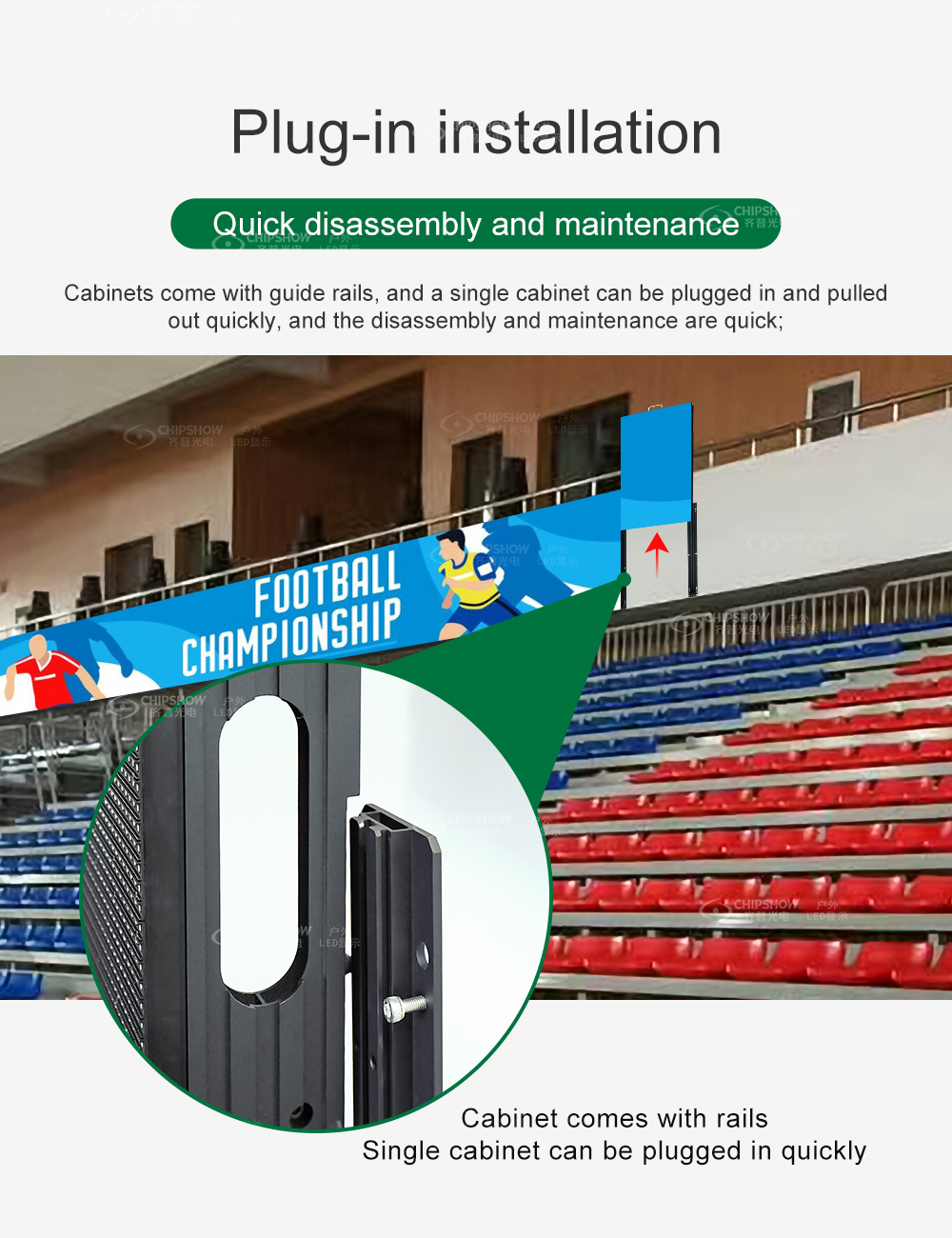

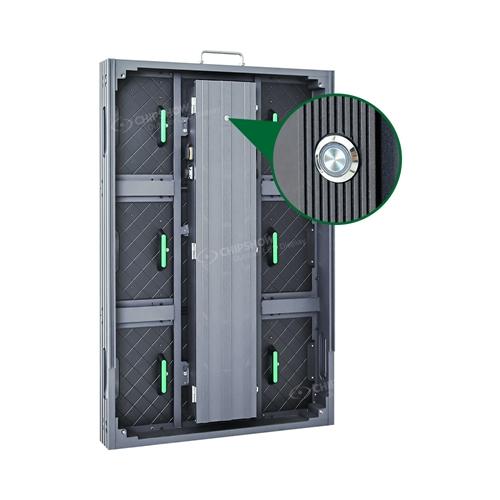

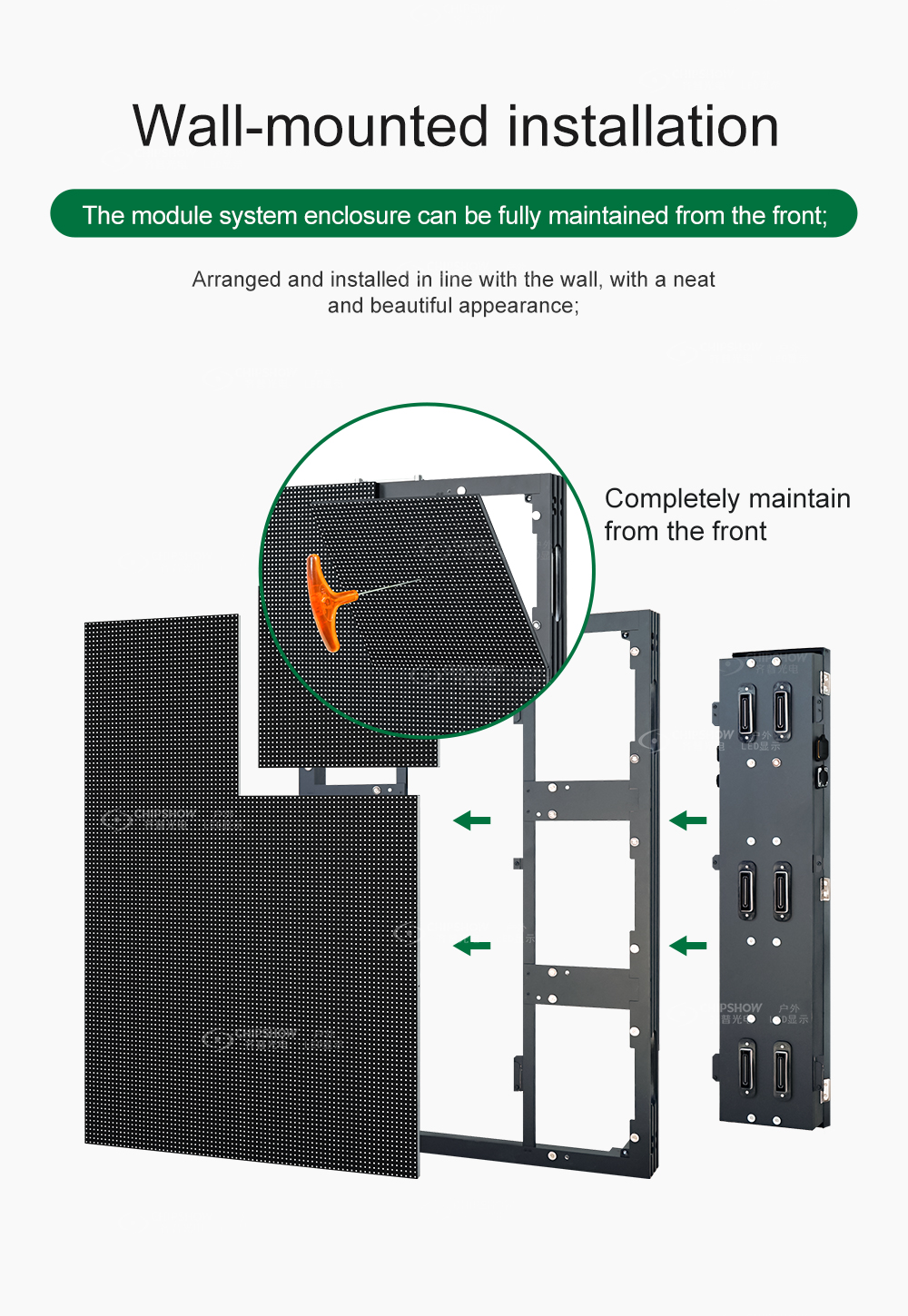

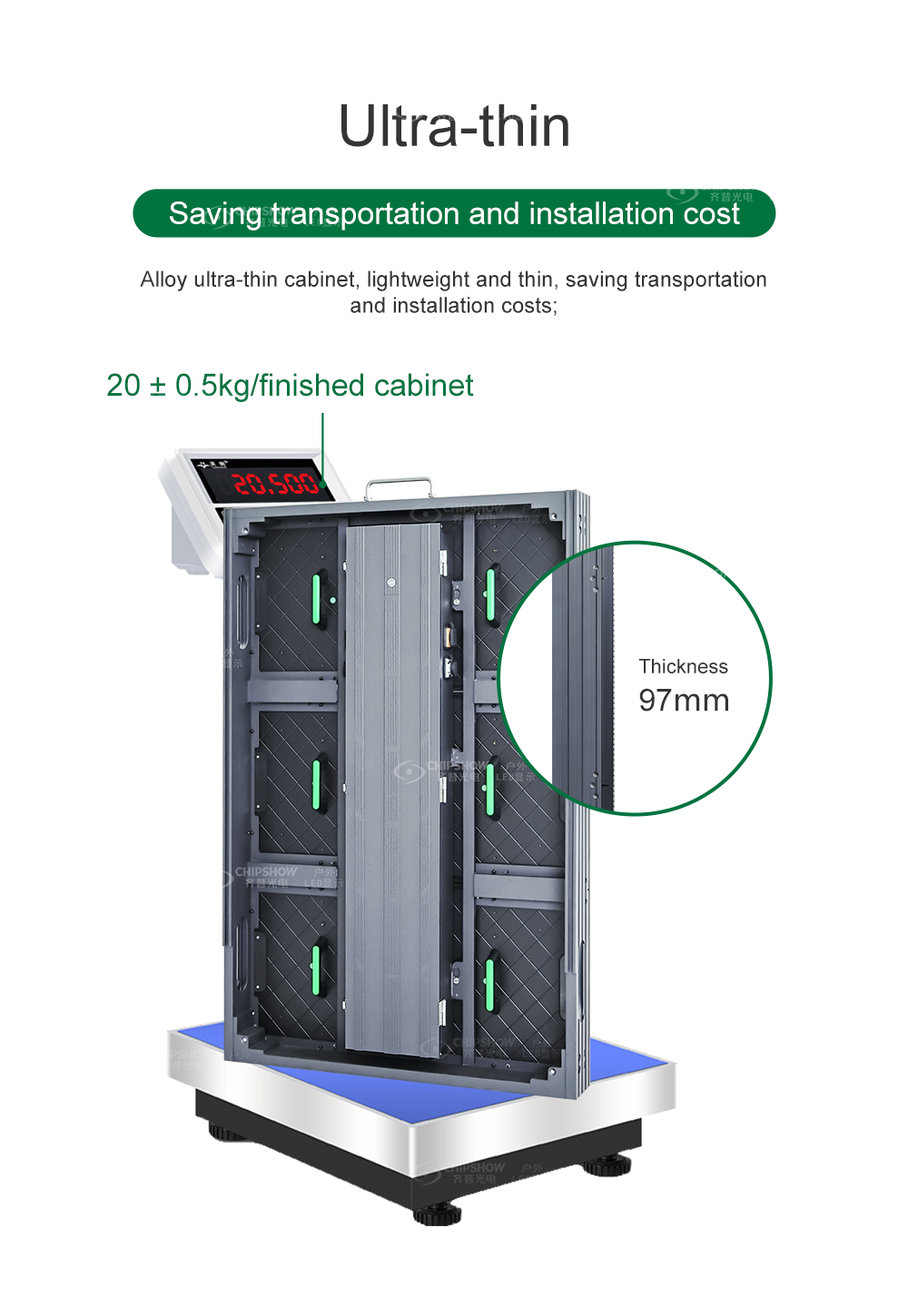

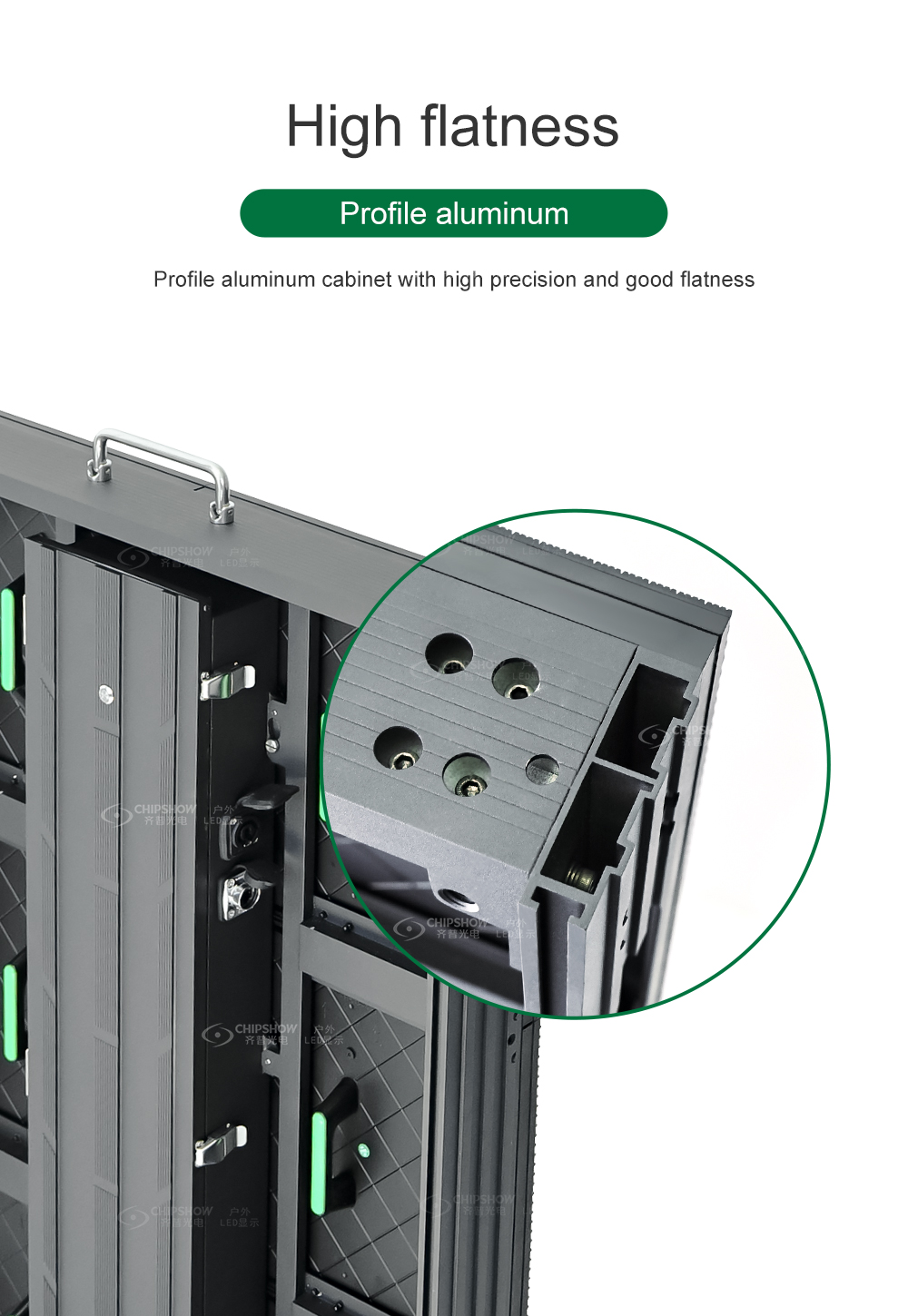

◙ The cabinet comes with a 90° rotating bracket and left and right fast locks for efficient assembly of the stadium LED display. ◙ The screen comes with soft mask and pillow protection, so athletes and the LED display are perfectly protected. ◙ Aluminum power box, thin and light, good heat dissipation, slowing down the aging of the power and module. ◙ Front and rear maintenance of the module, easy operation. ◙ Waterproof and dustproof, protection grade ≥ IP65. ◙ Energy-saving, about 1/3 energy saving than traditional LED display, greatly reducing the operating cost. ◙ Professional software, and supports video source input such as DP, HDMD, VGA, SDL, DVD, etc.

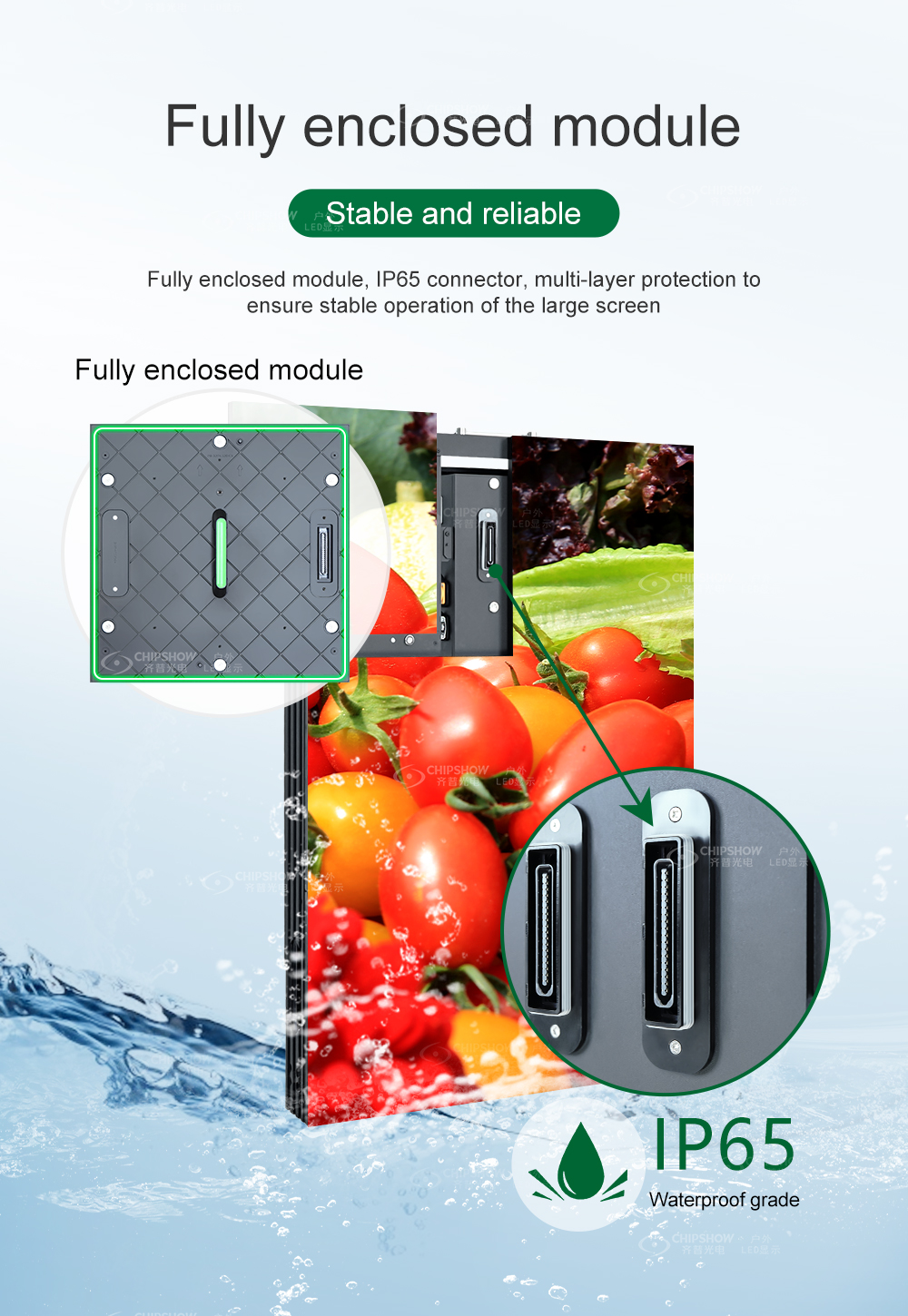

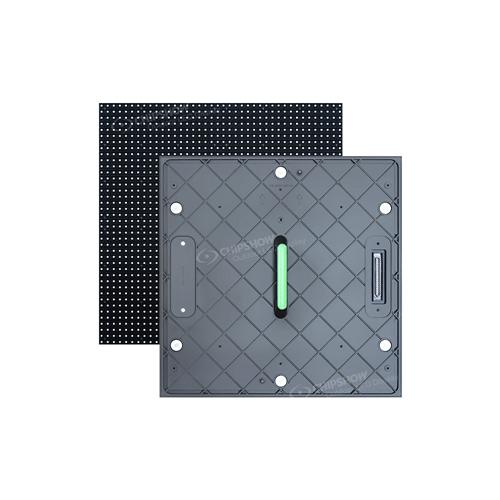

C-Sport P8 stadium perimeter LED screens are widely used for digital perimeter advertising; Features: 1 Every cabinet is equipped with left & right fast locks, and an adjustable 90 degree rotating bracket for convenience of quick assembly of perimeter display; 2 Every screen comes with soft pillow protectors, soft LED module masks, so both athletes and LED screens can be fully protected; 3 The aluminum power box not only has light weight but also has excellent performance in heat dissipation; this effectively slows the aging process of power modules; 4 Every LED module supports front-and-rear service, this makes the operation easy during installation and later maintenance; 5 The front and back of the cabinet is dustproof and waterproof, and reaches IP65 protection level; 6 Compared with conventional LED display screens, Chipshow C-Sport series is energy-saving – about 1/3 energy consumption can be saved; this greatly reduces the operating cost; 7 The screen also comes with professional perimeter advertising software that supports diverse video input sources, such as DP, HDMI, VGA, SDL, and DVD;

Replace dim projectors with vivid, broadcast-ready visuals tailored for sanctuaries. C-Max COB Sanctuary Wall (P1.86 / P2.5 In-Stock) Projector Replacement: Native 4:3 cabinet ratio makes it easy to match legacy screen sizes without complex resizing. Volunteer Friendly: Simple front-service design allows your media team to swap modules in seconds without tools. Budget Stewardship: Factory-direct pricing allows ministries to get premium visual quality without breaking the budget. Elevate your worship production with the C-Max Fine Pitch series. Designed for churches with online ministries or close seating arrangements, this series delivers stunning clarity and true-to-life colors. With a fanless design for total silence during prayer and high refresh rates for camera-friendly broadcasting, it’s the ultimate canvas for your message.

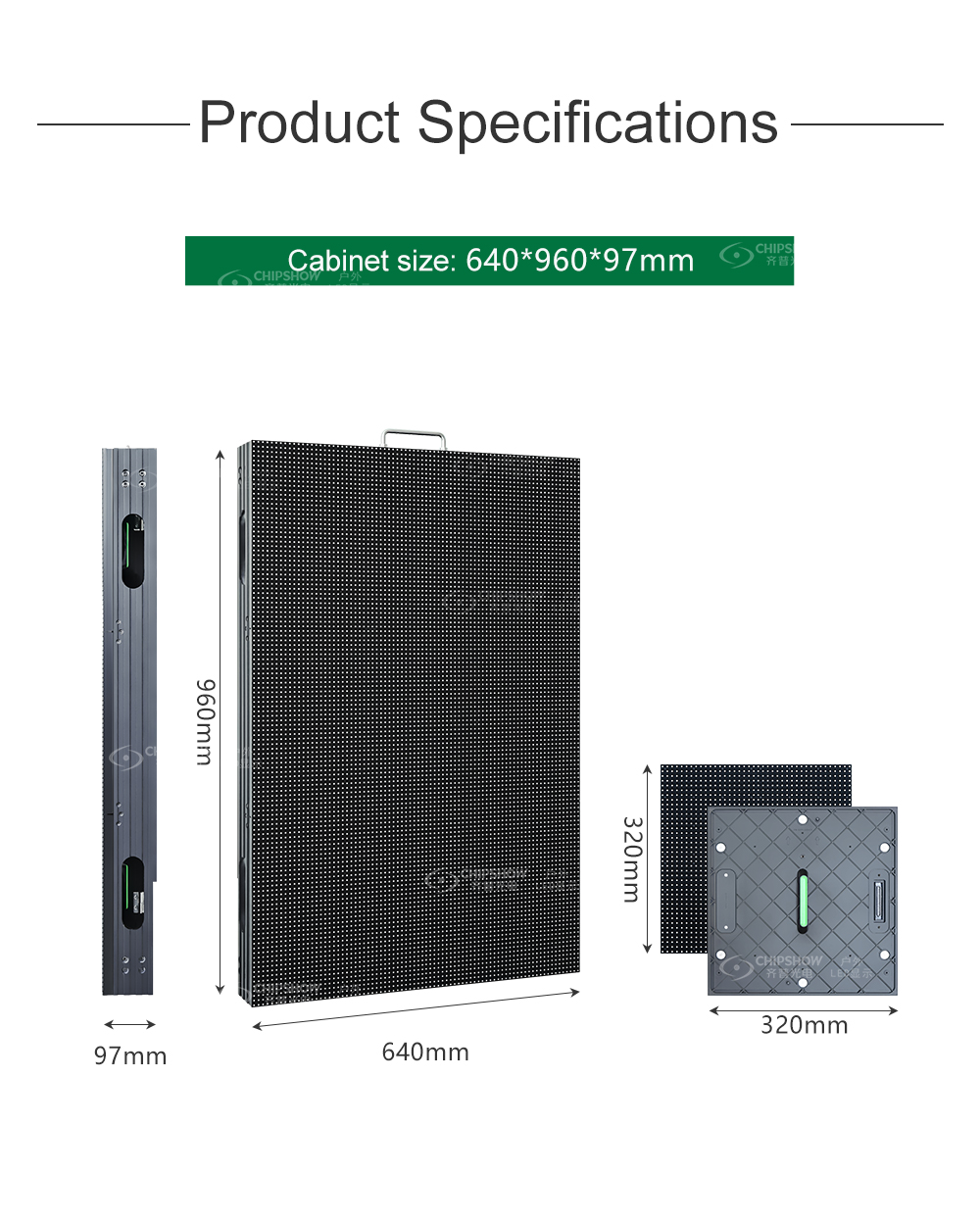

Pixel Pitch, Resolution rate, size: 5mm, 12*64Dots, 60*320 Pixel color, Pixel LEDL: 1R1G1B, SMD1921 Working voltage, Module Power: DC4.6V, ≤10W Driving IC, Driving way Standard configuration: ICND2153, 1/8 HUB: HUB75 Material, Cabinet Weight(kg/Cabinet): Sheet metal aluminum, 15kg/Cabinet Resolution rate, size, Module quantity: 120*192Dots, 600*960*95mm, 10X3 Density: 40000 Dots/㎡ White balance , Color temperature: 5000CD/㎡, 6000-8000K view angel, Non-Flatness, Module interval H/V：120°/120°, ＜0.2mm, ＜0.2mm Maximal power/㎡, Average power/㎡: ≤560W/㎡, ≤170W/㎡ Frame frequency, Refresh frequency, Gray grade: 60Hz, 3840Hz, 13bit Control system, System supports CHIPSHOW, Windows XP, WIN 7 Working temperature, Protection grade: ﹣20~50℃,  Front/Back：IP65/IP54

Features: 1 High brightness - every LED module adopts LED beads with optical lens filters; the brightness level can reach 8000 CD /㎡; 2 Energy-saving – compared with LED display screens that have a similar specification, this series can save more than 65% of energy; 3 Ultra-strong penetration: it can show drivers clear images, even though they are driving 120 KM per hour, in a far distance that is more than 210meters, or in foggy weather; 4 High protection - every LED module and every cabinet are fully enclosed, and both the front and rear of the screen are IP65 rated; 5 Quick maintenance – the simple and quick assemble and disassemble design will save you a lot of time significantly during installation and maintenance; 6 Ultra-light: the weight of every finished cabinet is less than 35kg/㎡, therefore, it does not have a strict requirement on the strength of the supporting structure, and is quite suitable as large LED display screens on highways; 7 High reliability: to ensure the reliability and stability of the screen under all kinds of bad weather conditions, the screen adopts high-quality LED beads, IC, and power supply units;

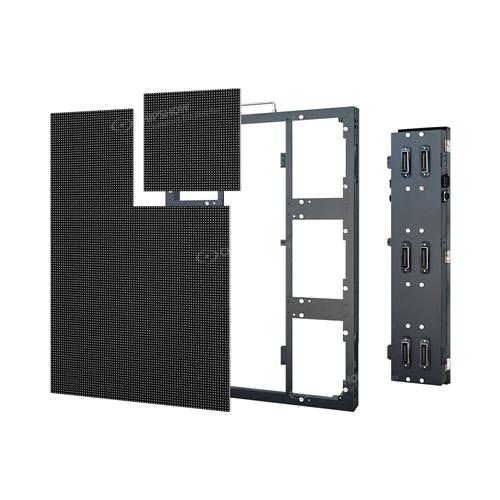

C-Easy P5,P6.67,P8,P10,P16 is a front and rear serviceable, energy-saving, outdoor waterproof replaceable LED modules. Advantages: 1. Energy-saving≥30%. 2. Brightness≤8500Nits 3. High accuracy and high flatness. 4. Replaceable modules, fast and easy replace. 5. Front and rear service. 6. IP65 protection grade 7. 320*320mm module size, you can assemble it into different size screens.
