Stage backdrop LED screens

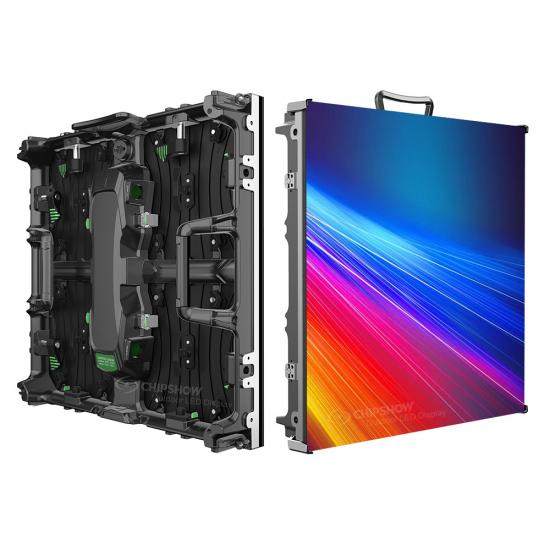

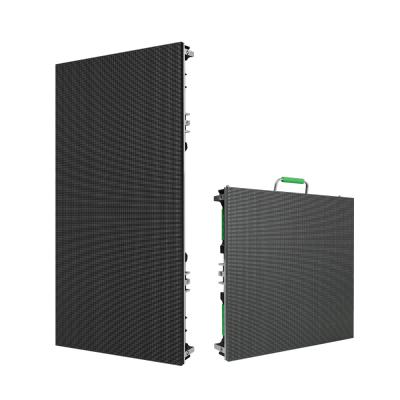

P2.97 C-Beetle indoor stage background rental screen Concert background screen

Front and rear maintainable indoor stage LED display is light, easy to install and excellent display effect
  • Brand:

    Chipshow
  • Item NO.:

    C-Beetle P2.97
  • Payment:

    Wire Transfer/ Checks
  • Product Origin:

    Shenzhen,China
  • Color:

    full color RGB
  • Shipping Port:

    Glendale California
  • Lead Time:

    3 days
  • Warranty:

    2 years
  • Product Detail

Product Demo:

Live Demo - In Stock, Ready To Deliver:

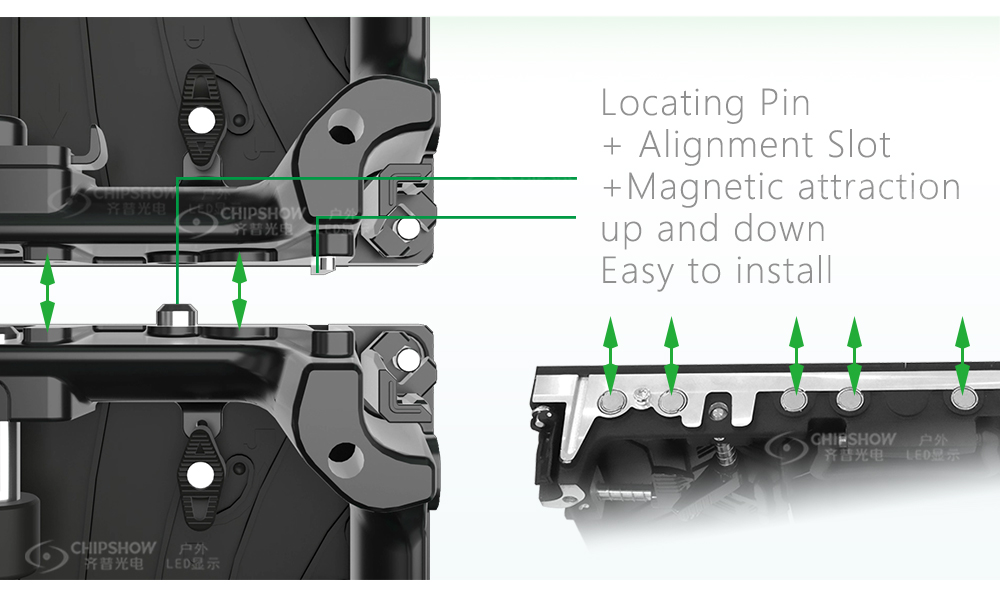

Magnet Installation Demo:


Advantages:

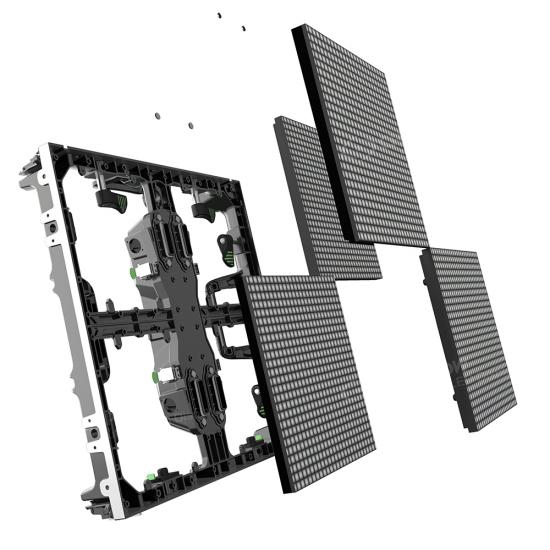

1,Easy:Modular design, easy assembly and maintenance.
2,module size:250*250mm ,Smooth surface, module gap small ,High precision.

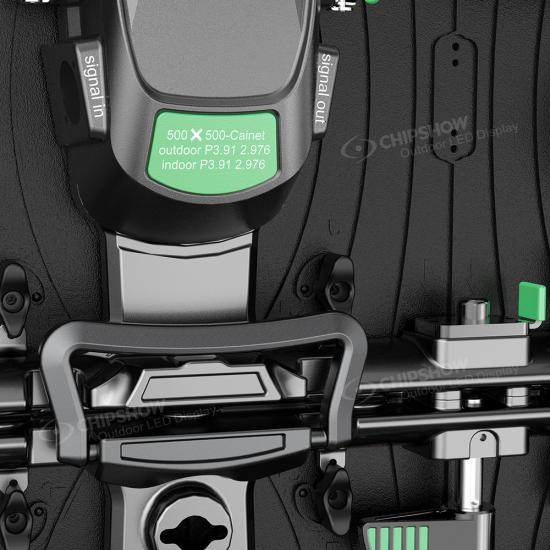

Cabinet features:

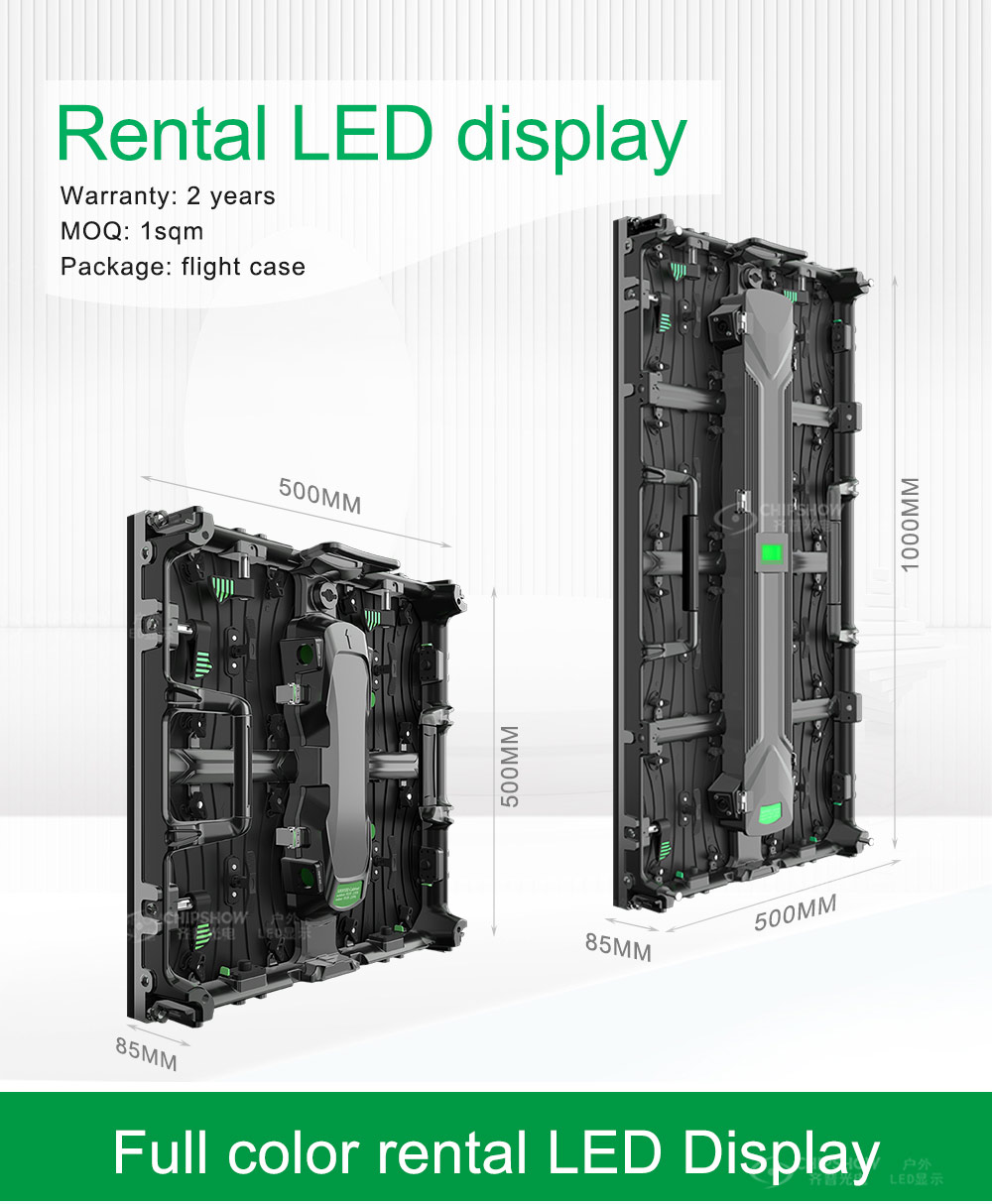

1,  Light:Cabinet size:500*500*86mm, Weight:7.9kg/pc.
2, Thin:Die-cast aluminum design, high precision, thickness only 86mm.
3, Fast:Fast locks, Easy to assemble and disassemble.
4, Compatibility:Available pixel pitch for P2.6,P2.97, P3.91,P4.81;
5, Low:Excellent cooling design, no fans or air-conditioners needed  noiseless, low power consumption, cost-effective.


Specification:


Item
Specification Parameter
Pixel Pitch、Resolution rate、size
2.971mm、84*84250*250*16mm

Pixel color Pixel LED


1R1G1B、 SMD2121 3in1
Working voltage、Module Power

DC4.5V28W


Driving IC、Driving way
ICN2153、1/28
HUB
HUB(AXS-500X500F)-V1.0
Material、Cabinet Weight(kg/Cabinet)
Cast aluminum、7.9kg/Cabinet
Resolution rate、size、Module quantity
168*168Dots、500*500*90m、2*2
Density
112896 Dots/㎡
White balance 、Color temperature
500-800CD/㎡、3000K-10000K
view angle、Non-Flatness、Module interval
H/V:120°/120°、<0.2mm、<0.2mm
Maximal power/㎡、Average power/㎡
450W/㎡、135W/㎡
Frame frequency、Refresh frequency、Gray grade
60Hz、2800~3840Hz 、≥14bit
Control system、System supports
CHIPSHOW,Windows XPWIN 7
Working temperature、Protection grade
-20~50℃、Front/BackIP45
